Zylinderkopf-Anbauteile for BMW 7 Series E32 750iL (1990)

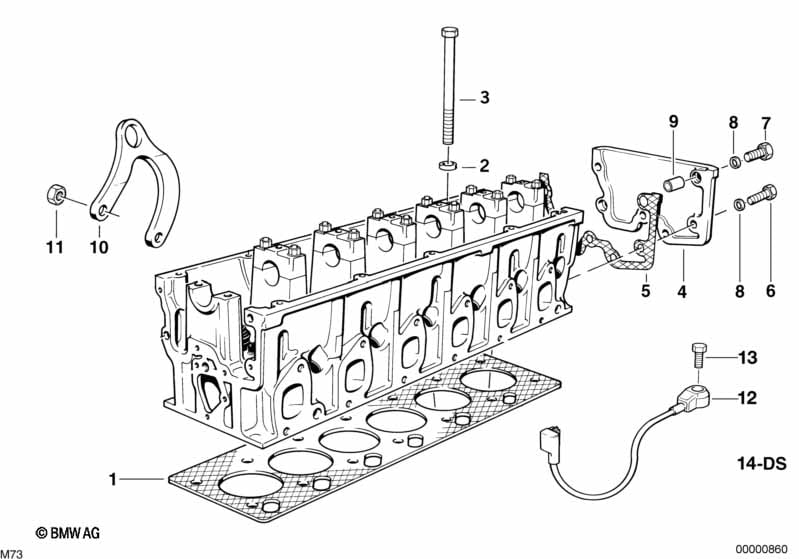

This Zylinderkopf-Anbauteile technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| nur passend zu Zylinder 1-6 | ||||||||||
| 01 | Zylinderkopfdichtung asbestfrei | 3-LOCH (+0,3MM) | 1 | 11121731578 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Zylinderkopfdichtung asbestfrei | 1 | 04/1990 | 11121729902 | Entfallen | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Dichtung Kettenkasten asbestfrei 1-Loch | 1 | 04/1990 | 11141725700 | $10.58 | Shop at ECS Tuning | ||||
| nur passend zu Zylinder 7-12 | ||||||||||
| 01 | Zylinderkopfdichtung asbestfrei | 3-LOCH (+0,3MM) | 1 | 11121731654 | $131.58 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Dichtung Kettenkasten asbestfrei 3-Loch | 1 | 11141733453 | $26.04 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Zylinderkopfdichtung asbestfrei | 1-LOCH | 1 | 04/1990 | 11121729907 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Dichtung Kettenkasten asbestfrei 1-Loch | 1 | 04/1990 | 11141725703 | $9.73 | Entfallen | Shop at ECS Tuning | |||
| 02 | Unterlegscheibe | X | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 03 | Satz Schrauben f. Zylinderkopf | M10X110 | 2 | 11127583116 | $43.02 | Shop at ECS Tuning | ||||
| 04 | Deckel rechts | ZYL.1-6 | 1 | 11141713539 | $18.77 | Shop at ECS Tuning | ||||
| 04 | Deckel links | ZYL.7-12 | 1 | 11141713541 | $18.77 | Shop at ECS Tuning | ||||
| 05 | Dichtung | 2 | 11141725787 | $2.46 | Shop at ECS Tuning | |||||
| 06 | Sechskantschraube | M6X20-8.8-ZNS | 8 | 07119913016 | $0.60 | Entfallen | Shop at ECS Tuning | |||
| 07 | Sechskantschraube | M6X28-8.8-ZNS | 4 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 08 | Unterlegscheibe | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Passhülse | D=8,5X9MM | 4 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Halter | 2 | 11121725907 | $10.83 | Shop at ECS Tuning | |||||
| 11 | Sechskantmutter mit Flansch | M8 | 4 | 11611713432 | $0.43 | Entfallen | Shop at ECS Tuning | |||
| 14 | Dichtungssatz Zylinderkopf asbestfrei | 1 | 11129059239 | $401.48 | Entfallen | Shop at ECS Tuning | ||||
| Dichtungssatz ohne Zylinderkopfdichtung | ||||||||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
