Kühlsystem-Lüfter/Lüfterkupplung for BMW 7 Series E32 750iL (1990)

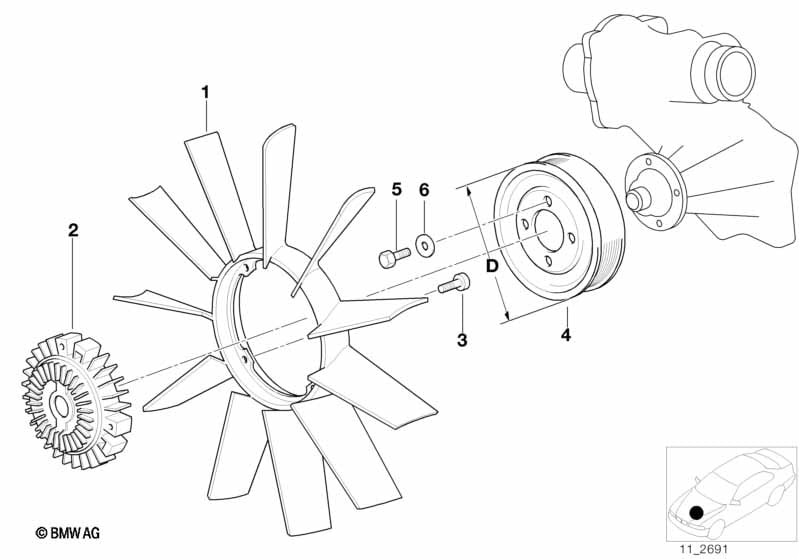

This Kühlsystem-Lüfter/Lüfterkupplung technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lüfter 11 Blatt | 1 | 11521712110 | $60.90 | Shop at ECS Tuning | |||||

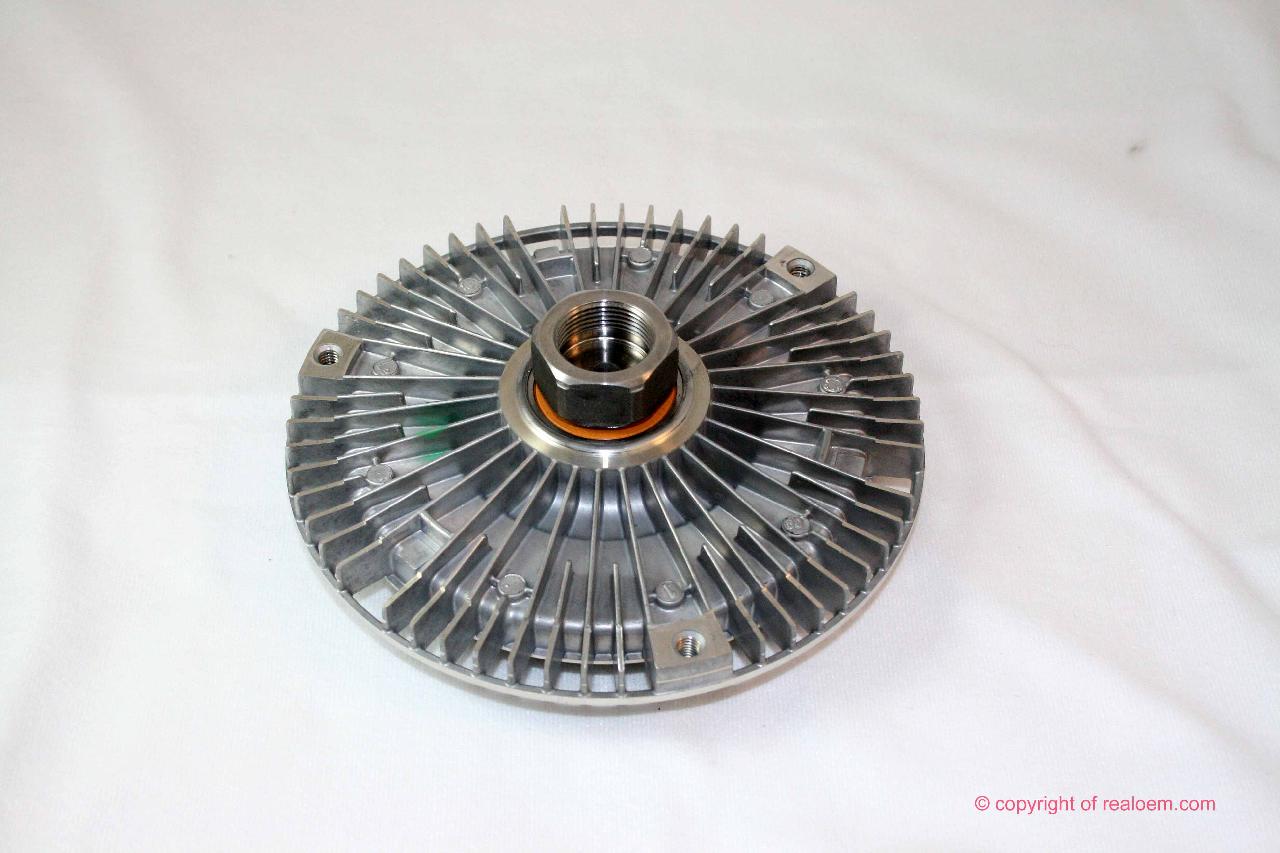

| 02 | Lüfterkupplung | 92CEL | 1 | 11527502804 | $241.95 | Shop at ECS Tuning | ||||

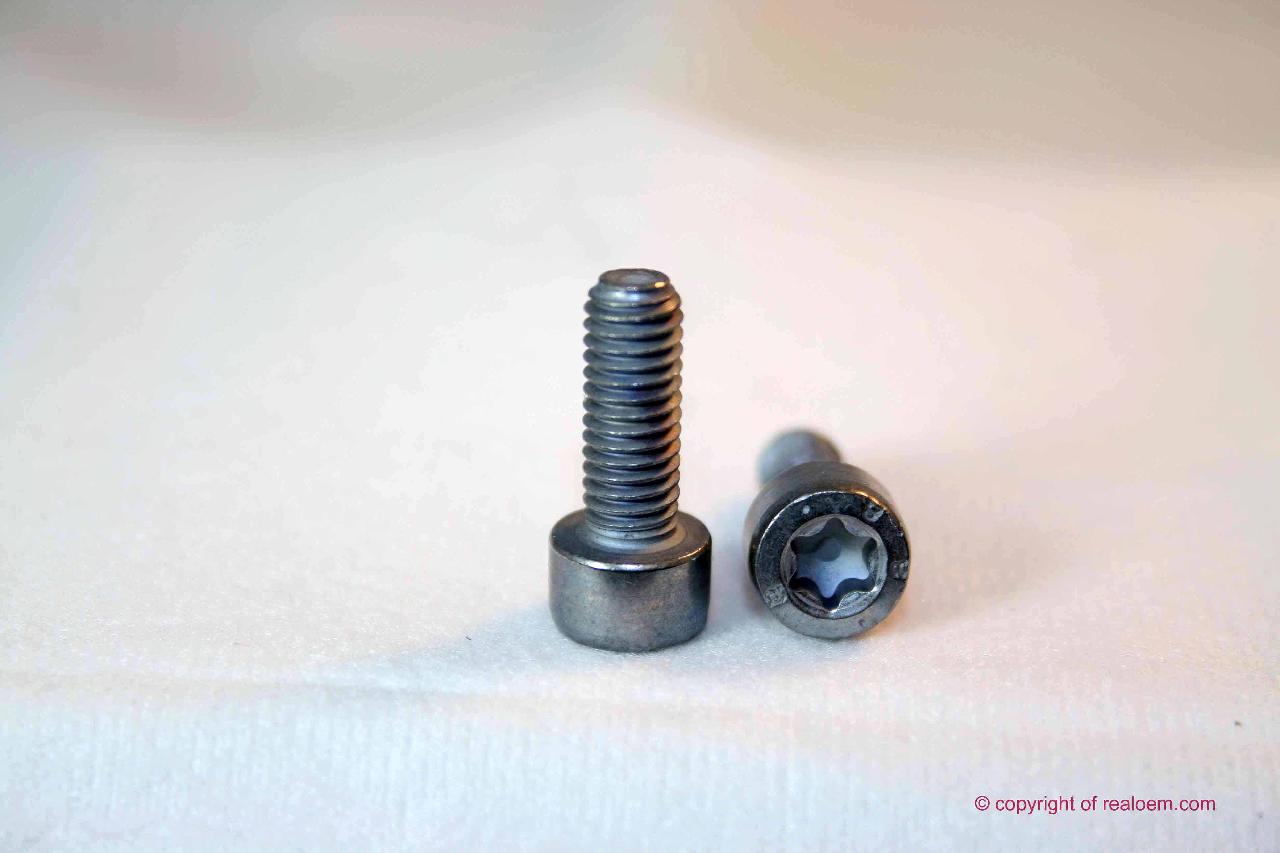

| 03 | ISA-Schraube | M6X16-8.8-ZNNIV | 3 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Riemenscheibe | D=109MM | 1 | 11511709872 | $108.38 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 04 | Riemenscheibe | D=97MM | 1 | 09/1989 | 11511731905 | $186.83 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Länderausführung Australien oder Heissland-Ausführung |
L810A=Ja S823A=Ja |
|||||||||
| 04 | Riemenscheibe | D=97MM | 1 | 09/1989 | 11511731905 | $186.83 | Shop at ECS Tuning | |||
| 05 | Sechskantschraube mit Scheibe | M6X10-Z1 | 4 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
