Ölwanne/Ölmessvorrichtung for BMW 7 Series E32 750iL (1990)
This Ölwanne/Ölmessvorrichtung technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ölwanne Oberteil | 1 | 11131715688 | $882.95 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Stiftschraube | M6X25-ZN | 1 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Stiftschraube | M8X45-8.8-ZNS3 | 1 | 07129903965 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Stiftschraube | M8X35-8.8-PHR | 1 | 07129908130 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Abdeckkappe | 1 | 11131713202 | $1.08 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Schraubstutzen | M14X1,5X44,5 | 1 | 13321287132 | $4.07 | Entfallen | Shop at ECS Tuning | |||
| 07 | Dichtring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Dichtung asbestfrei | 1 | 11131702047 | $29.38 | Shop at ECS Tuning | |||||
| Für die Reparatur notwendig | ||||||||||
| -- | Sechskantschraube | M6X60 | 7 | 07119902994 | Shop at ECS Tuning | |||||
| -- | Sechskantschraube mit Scheibe | M6X20-Z1 | 28 | 07119903850 | $0.62 | Shop at ECS Tuning | ||||
| -- | Sechskantschraube mit Scheibe | M8X25-Z3 | 2 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Sechskantschraube mit Scheibe | M6X60-Z3 | 6 | 07119913001 | $0.63 | Entfallen | Shop at ECS Tuning | |||
| 09 | Sechskantschraube | M6X60 | 6 | 07119902994 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Federscheibe | B6 | 6 | 07119932072 | $0.09 | Entfallen | Shop at ECS Tuning | |||
| 10 | Sechskantschraube mit Scheibe | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 11 | Sechskantschraube mit Scheibe | M8X25-Z3 | 2 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Sechskantschraube | M6X22-8.8-ZNS3 | 2 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Unterlegscheibe | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Ölwanne | 1 | 09/1987 | 11131731907 | $422.05 | Entfallen | Shop at ECS Tuning | |||
| 14 | Dichtring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 15 | Verschlussschraube | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 16 | Dichtung asbestfrei | 1 | 11131713705 | Shop at ECS Tuning | ||||||
| 17 | Halter links | 1 | 11131702998 | $1.98 | Shop at ECS Tuning | |||||
| 17 | Halter rechts | 1 | 04/1990 | 11131729838 | $9.71 | Shop at ECS Tuning | ||||

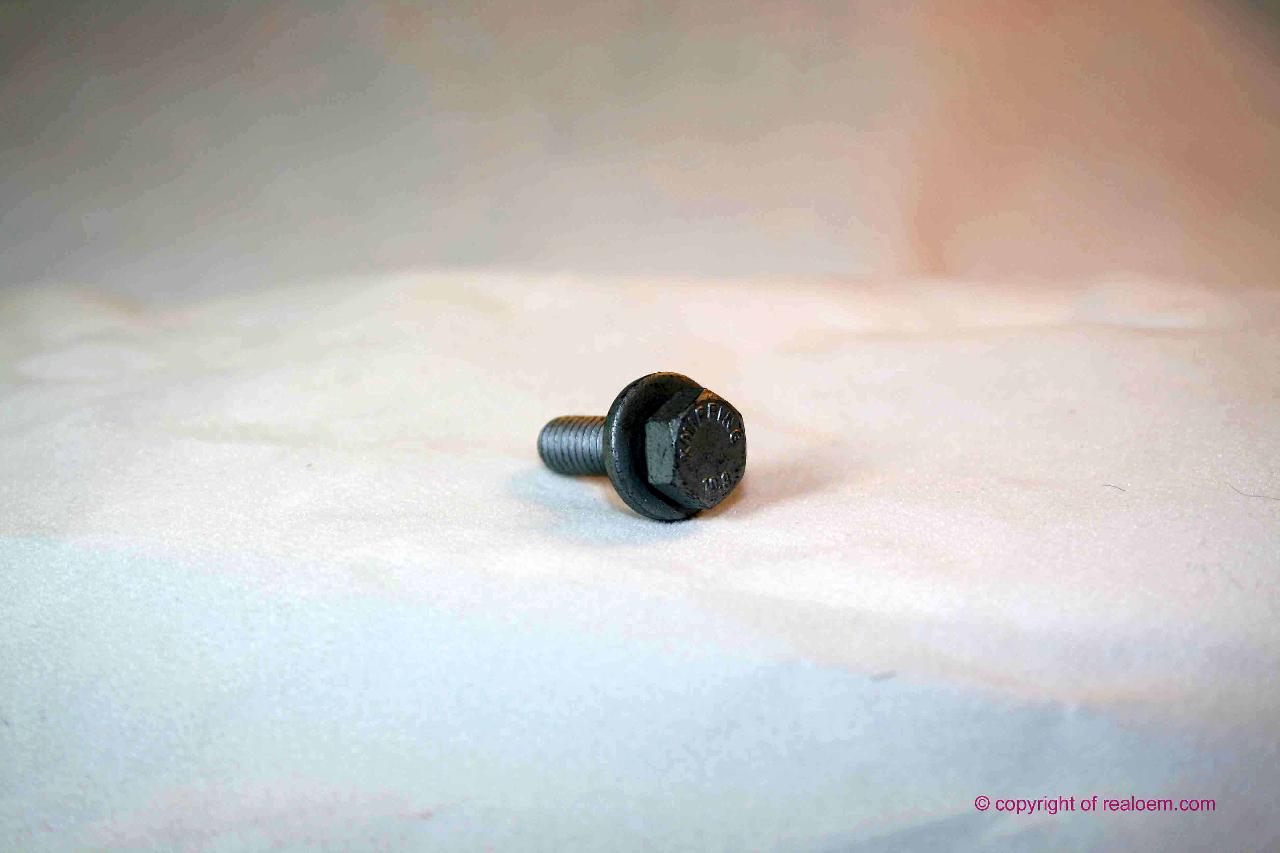

| 18 | Sechskantschraube mit Scheibe | M6X18 | X | 11131247069 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Sechskantschraube mit Scheibe | M6X18 | 4 | 11131247069 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Ölstandssensor | L=95MM | 1 | 12611747119 | $182.52 | Entfallen | Shop at ECS Tuning | |||
| 21 | Dichtring | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 22 | Abdeckblech | 1 | 01/1992 | 12611720419 | $6.36 | Entfallen | Shop at ECS Tuning | |||
| nur passend zu | ||||||||||
| -- | Ölstandssensor | X | 01/1992 | 12611720420 | $135.55 | Entfallen | Shop at ECS Tuning | |||
| -- | Ölstandssensor | L=95MM | X | 01/1992 | 12611747119 | $182.52 | Entfallen | Shop at ECS Tuning | ||
| 23 | Sechskantmutter | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Führungsrohr | L=524MM | 1 | 11431718264 | $40.73 | Shop at ECS Tuning | ||||
| 25 | O-Ring | 15,0X5,0 | 1 | 11431707164 | $4.06 | Shop at ECS Tuning | ||||
| 26 | Unterlegscheibe | 1 | 11437838127 | $3.19 | Shop at ECS Tuning | |||||
| 27 | Halter | 1 | 11437840407 | $1.98 | Shop at ECS Tuning | |||||
| 28 | Sechskantmutter selbstsichernd | M6-10 ZN | 2 | 04/1994 | 07129922705 | $0.27 | Entfallen | Shop at ECS Tuning | ||
| 28 | Sechskantmutter selbstsichernd | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 29 | Schelle | D=16/6,4 | 1 | 61131355966 | $1.62 | Entfallen | Shop at ECS Tuning | |||
| 30 | Lasche | 1 | 11431715631 | $0.79 | Shop at ECS Tuning | |||||
| 31 | Sechskantschraube | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 32 | Ölmessstab | 2 | 11431715916 | $15.30 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | O-Ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 32 | Ölmessstab | 2 | 11431733421 | $16.74 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | O-Ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
