Riementrieb Zusatzgenerator for BMW 7 Series E32 750iL (1990)

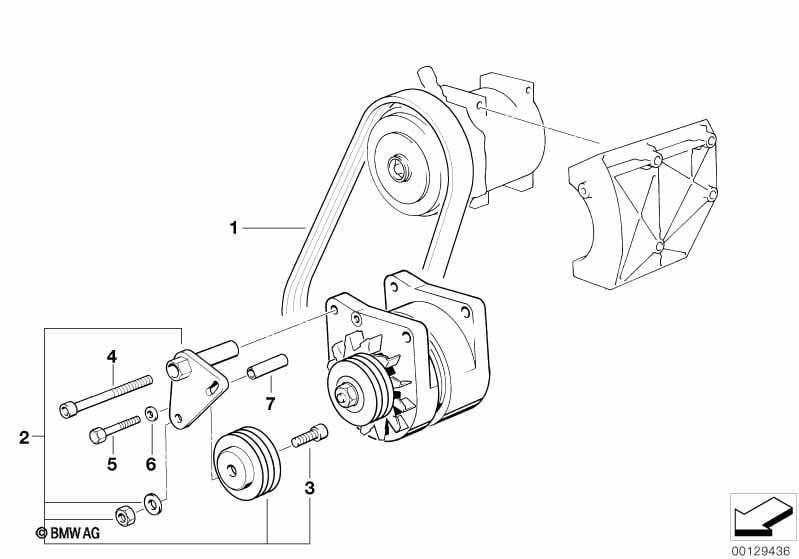

This Riementrieb Zusatzgenerator technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Keilrippenriemen | 3K X 590 | 1 | 11281736744 | $22.68 | Shop at ECS Tuning | ||||
| 02 | Spannrolle | 1 | 11281731102 | $172.62 | Shop at ECS Tuning | |||||
| 03 | ISA-Schraube | M8X16-8.8-ZNS3 | 1 | 07129905214 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Zylinderschraube | M8X150 | 1 | 07119902671 | $3.51 | Entfallen | Shop at ECS Tuning | |||
| 05 | Sechskantschraube | M6X50 8.8 ZNS3 | 1 | 07119902993 | $0.59 | Shop at ECS Tuning | ||||
| 06 | Unterlegscheibe | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Hülse | M6X33,5 | 1 | 11281731095 | $9.04 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
