Steuertrieb-Steuerkette oben for BMW MINI Countryman F60 Cooper (2019)

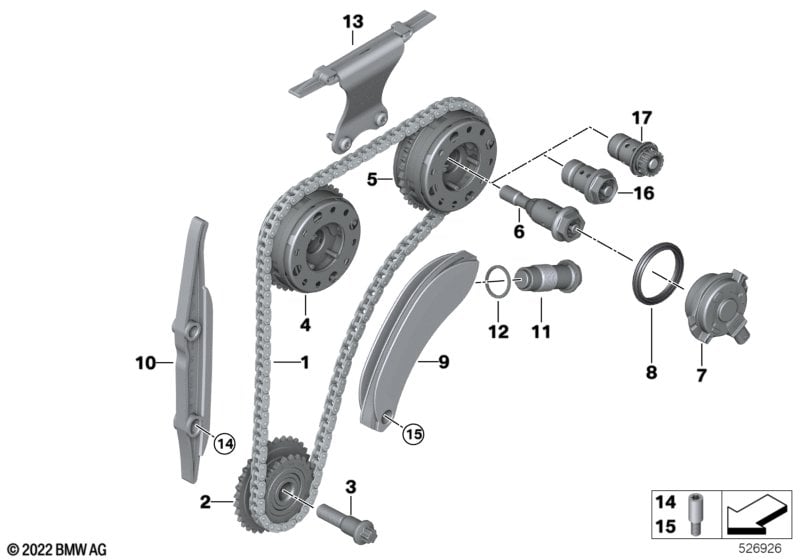

This Steuertrieb-Steuerkette oben technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steuerkette | 1 | 11318648729 | Shop at ECS Tuning | ||||||
| 02 | Kettenrad | 1 | 13528642165 | Shop at ECS Tuning | ||||||
| 03 | Lagerschraube | M12X1 | 1 | 13527617486 | Shop at ECS Tuning | |||||
| PuMA-Maßnahme 64122020 beachten | ||||||||||
| 04 | Verstelleinheit Einlassnockenwelle | 1 | 01/2017 | 11368684920 | Shop at ECS Tuning | |||||
| 05 | Verstelleinheit Auslassnockenwelle | 1 | 01/2017 | 11368684921 | Shop at ECS Tuning | |||||
| 07 | Aktor VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 08 | Dichtung | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 09 | Spannschiene | 1 | 11319452397 | Shop at ECS Tuning | ||||||
| 10 | Führungsschiene | 1 | 11317617489 | Shop at ECS Tuning | ||||||
| 11 | Kettenspanner | 1 | 11317617475 | Shop at ECS Tuning | ||||||
| 12 | Dichtring | A22X27 | 1 | 11317631972 | Shop at ECS Tuning | |||||
| Befestigungsschrauben im ZB enthalten | ||||||||||
| 13 | Gleitschiene | 1 | 11317617474 | Shop at ECS Tuning | ||||||
| 14 | Lagerbolzen Zylinderkopf | 2 | 11317797900 | Shop at ECS Tuning | ||||||
| 15 | Lagerbolzen Kurbelgehäuse | 1 | 13527797908 | Shop at ECS Tuning | ||||||
| PuMA-Maßnahme 64122020 beachten | ||||||||||
| 17 | Zentralventil VANOS | M21 | 2 | 01/2017 | 11368696446 | Shop at ECS Tuning | ||||
