Abgasturbolader mit Schmierung for BMW 2 Series F45 Active Tourer 218d (2015)

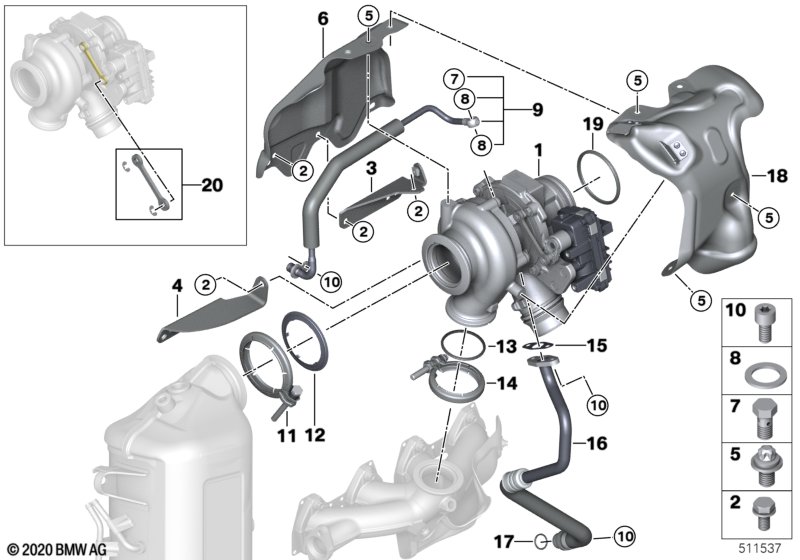

This Abgasturbolader mit Schmierung technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Bitte Rep.-Anleitung 11 65 020 zwingend beachten ! |
||||||||||
| 01 | RP Abgasturbolader | 1 | 11658513636 | Shop at ECS Tuning | ||||||
| nur in Verbindung mit | ||||||||||
| -- | Anbausatz Abgasturbolader | VALUE PARTS | 1 | 11655A74B42 | Shop at ECS Tuning | |||||
| -- | Anbausatz Motorölleitung | VALUE PARTS | 1 | 11425A74B44 | Shop at ECS Tuning | |||||
| 02 | Sechskantschraube mit Scheibe | M8X16 | 6 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Abstützung | 1 | 11658513637 | Shop at ECS Tuning | ||||||
| 04 | Abstützung | 1 | 11658575742 | Shop at ECS Tuning | ||||||
| 05 | Sechsrundschraube | M6X12 8.8 | 4 | 07119908672 | Shop at ECS Tuning | |||||
| 06 | Wärmeschutzblech Abgasturbolader | 1 | 11658571892 | Shop at ECS Tuning | ||||||
| 07 | Hohlschraube | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 08 | Dichtring | 2 | 11427100363 | NoS | Shop at ECS Tuning | |||||
| 09 | Ölleitung | 1 | 11428472392 | Shop at ECS Tuning | ||||||
| 10 | ISA-Schraube | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
| 11 | V-Bandschelle | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| 12 | Dichtung | 1 | 18308513651 | Shop at ECS Tuning | ||||||
| 13 | Dichtring | 1 | 11628519884 | Shop at ECS Tuning | ||||||
| 14 | Schelle | 1 | 11628519885 | Shop at ECS Tuning | ||||||
| 15 | Dichtung asbestfrei | 1 | 11427925922 | Shop at ECS Tuning | ||||||
| 16 | Rücklaufleitung | 1 | 11428513615 | Shop at ECS Tuning | ||||||
| 17 | O-Ring | 16X2MM | 1 | 11428604872 | Shop at ECS Tuning | |||||
| 18 | Wärmeschutzblech Abgasturbolader | 1 | 11658571893 | Shop at ECS Tuning | ||||||
| 19 | Formdichtring | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 20 | Reparatursatz Koppelstange | 1 | 11658477655 | Shop at ECS Tuning | ||||||
