Riementrieb-Schwingungsdämpfer for BMW MINI F66 JCW

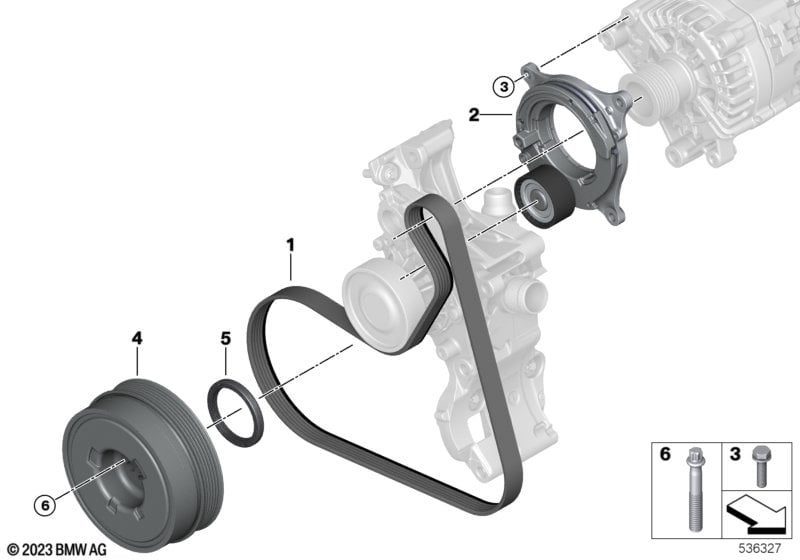

This Riementrieb-Schwingungsdämpfer technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Keilrippenriemen | 6PK 1175 | 1 | 11285B32CE4 | Shop at ECS Tuning | |||||
| 02 | Riemenspanner mechanisch | 1 | 11289485813 | Shop at ECS Tuning | ||||||
| 03 | Sechskantschraube | 3 | 07119908571 | Shop at ECS Tuning | ||||||
| 04 | Schwingungsdämpfer | 1 | 11237952888 | Shop at ECS Tuning | ||||||
| 05 | Wellendichtring | 55X68X8 | 1 | 11118664905 | Shop at ECS Tuning | |||||
| 06 | ASA-Schraube | M10X65 | 4 | 11238585220 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F66 JCW Riementrieb-Schwingungsdämpfer?
- This technical diagram illustrates the Riementrieb-Schwingungsdämpfer within the Motor group for the MINI F66 JCW. It provides a detailed exploded view of the components, identifying key parts such as the Keilrippenriemen (Part #11285B32CE4).
- Which models use the hardware listed in this Riementrieb-Schwingungsdämpfer?
- The hardware and components featured in the Riementrieb-Schwingungsdämpfer are specific to the MINI F66 JCW. These technical specifications ensure that parts like the Keilrippenriemen (11285B32CE4) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Riementrieb-Schwingungsdämpfer assembly?
- Each item in the Riementrieb-Schwingungsdämpfer corresponds to the numbered list below the illustration. For the MINI F66 JCW, you can identify the Keilrippenriemen by locating its position on the schematic, which then links to the official BMW part number 11285B32CE4 for the Motor section.
