Generator Einzelteile 120A for BMW 5 Series E39 528i (2000)

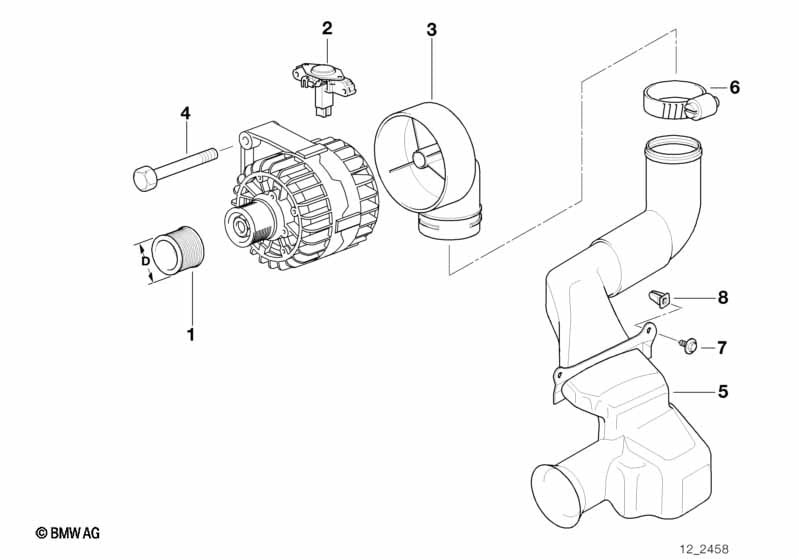

This Generator Einzelteile 120A technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | nur passend zu Generator Bosch Typ Nr. 0 123 515 022 BMW Nr. 12 31 1 432 986 / 980 nur passend zu Generator Bosch Typ Nr. 0 123 515 023 BMW Nr. 12 31 1 433 265 / 266 |
|||||||||
| 01 | Riemenscheibe Generator | D=55MM | 1 | 12311432988 | $32.10 | Shop at ECS Tuning | ||||
| nur passend zu | ||||||||||
| -- | Kompakt Generator | 120A | X | 12311432986 | +Pfand | Shop at ECS Tuning | ||||
| 02 | Regler | BOSCH | 1 | 12311713491 | $157.93 | Shop at ECS Tuning | ||||
| 03 | Ansaugstutzen | D=65MM | 1 | 12311436637 | $25.58 | Shop at ECS Tuning | ||||
| 04 | Sechskantschraube mit Scheibe | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 05 | Luftkanal | 1 | 12311744460 | $24.78 | Shop at ECS Tuning | |||||
| 06 | Schlauchschelle | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 07 | Sechskantblechschraube | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Spreizmutter | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
