Zündkerze/Zündkabel/Zündspule for BMW R45-R65LS..78-85 R65

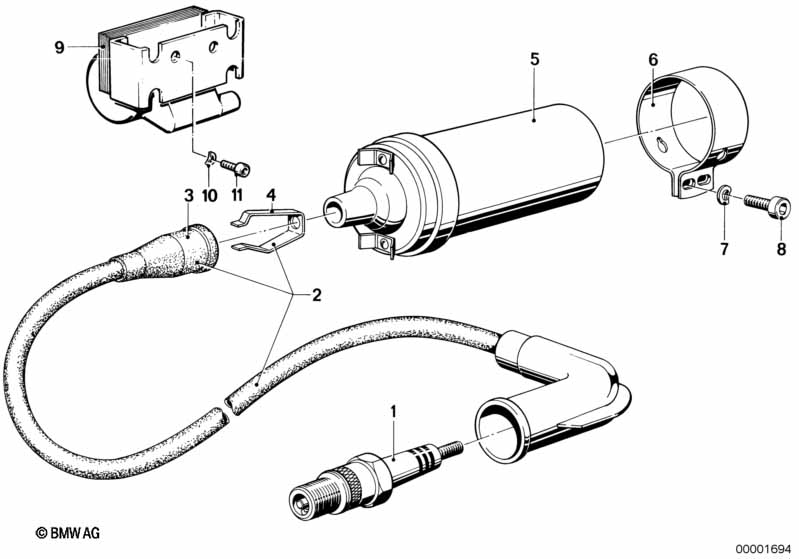

This Zündkerze/Zündkabel/Zündspule technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zündkerze | BOSCH W5DC | 2 | 12121338146 | $6.96 | +Pfand | Shop at ECS Tuning | |||
| 01 | Zündkerze | CHAMPION N-6YC | 2 | 12121338149 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Zündkabel | 2 | 12121243453 | $39.79 | +Pfand | Shop at ECS Tuning | ||||
| 03 | Schutzkappe | 2 | 12118536129 | $6.07 | Shop at ECS Tuning | |||||
| 04 | Kabelhülse | 2 | 12128536120 | $6.76 | Entfallen | Shop at ECS Tuning | ||||
| 05 | Zündspule | 6V | 2 | 09/1980 | 12131243452 | $103.95 | +Pfand | Shop at ECS Tuning | ||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Behördenausführung |
=Ja |
|||||||||
| 05 | Zündspule | 6V | 2 | 09/1980 | 12131243452 | $103.95 | +Pfand | Shop at ECS Tuning | ||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Schelle | 2 | 09/1980 | 12131243391 | $6.99 | Entfallen | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Behördenausführung |
=Ja |
|||||||||
| 06 | Schelle | 2 | 09/1980 | 12131243391 | $6.99 | Entfallen | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| 07 | Federscheibe schwarz | B6-ZN | 4 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| 07 | Unterlegscheibe | 5.3-140 HV-ZNS | 4 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| 07 | Federscheibe | B6-ZNS3 | 4 | 09/1980 | 07119904496 | $1.78 | Entfallen | Shop at ECS Tuning | ||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Behördenausführung |
=Ja |
|||||||||
| 07 | Federscheibe schwarz | B6-ZN | 4 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| 07 | Unterlegscheibe | 5.3-140 HV-ZNS | 4 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| 07 | Federscheibe | B6-ZNS3 | 4 | 09/1980 | 07119904496 | $1.78 | Entfallen | Shop at ECS Tuning | ||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Zylinderschraube | M6X12 ZN | 2 | 09/1980 | 07119919607 | $2.80 | Entfallen | Shop at ECS Tuning | ||
| nur in Verbindung mit | ||||||||||
| 08 | Zylinderschraube | M6X16 | 2 | 09/1980 | 07119919623 | Entfallen | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| 08 | Zylinderschraube | M6X12 ZN/SW | 2 | 09/1980 | 07119919800 | $0.60 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Behördenausführung |
=Ja |
|||||||||
| 08 | Zylinderschraube | M6X12 ZN | 2 | 09/1980 | 07119919607 | $2.80 | Entfallen | Shop at ECS Tuning | ||
| nur in Verbindung mit | ||||||||||
| 08 | Zylinderschraube | M6X16 | 2 | 09/1980 | 07119919623 | Entfallen | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| 08 | Zylinderschraube | M6X12 ZN/SW | 2 | 09/1980 | 07119919800 | $0.60 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| 09 | Zündspule | 1 | 09/1980 | 12131244426 | $190.74 | +Pfand | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Behördenausführung |
=Ja |
|||||||||
| 09 | Zündspule | 1 | 09/1980 | 12131244426 | $190.74 | +Pfand, SI 121691603 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Deckel | 1 | 09/1980 | 65311244437 | Entfallen | Shop at ECS Tuning | ||||
| 10 | Federscheibe | B5 | 2 | 09/1980 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 11 | Zylinderschraube | M5X10-8.8-ZNNIV | 2 | 09/1980 | 07119904303 | $0.25 | Shop at ECS Tuning | |||
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
- Entfallen = nicht mehr lieferbar.
- SI = Service-Information
