Schwimmer/Steuerdose for BMW 5 Series E12 520 (1976)

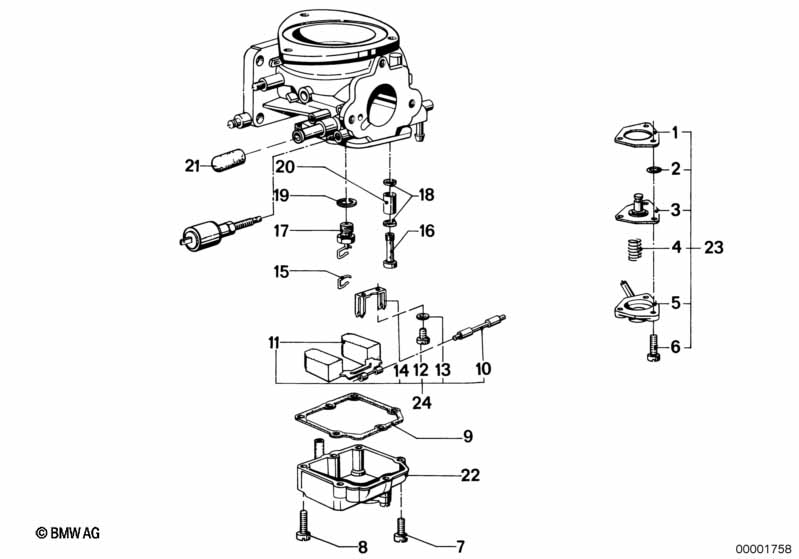

This Schwimmer/Steuerdose technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dichtung | 2 | 13111257194 | $1.68 | Shop at ECS Tuning | |||||
| 01 | Dichtung | 2 | 13111261690 | $14.17 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Gemischregulierschraube | 1 | 13111278354 | $9.10 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Satz Membrane | 1 | 13111709154 | $36.33 | Entfallen | Shop at ECS Tuning | ||||
| 04 | Feder | 1 | 13111258435 | Entfallen | Shop at ECS Tuning | |||||
| 05 | Deckel | 1 | 13111258282 | Entfallen | Shop at ECS Tuning | |||||
| 05 | Satz Membrane | 1 | 13111709154 | $36.33 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Zylinderschraube | 3 | 13111258283 | Entfallen | Shop at ECS Tuning | |||||
| 07 | Zylinderschraube | 6 | 13111258190 | $1.67 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Zylinderschraube | 6 | 13111258189 | Entfallen | Shop at ECS Tuning | |||||
| 09 | Dichtung | 2 | 13111258187 | $4.44 | Entfallen | Shop at ECS Tuning | ||||
| 10 | Schwimmerachse | 2 | 13111258185 | Entfallen | Shop at ECS Tuning | |||||
| 11 | Satz Schwimmer | 2 | 13111709151 | $63.40 | Entfallen | Shop at ECS Tuning | ||||
| 13 | Federring | 4 | 13111258184 | Entfallen | Shop at ECS Tuning | |||||
| 14 | Halter | 2 | 13111258182 | Entfallen | Shop at ECS Tuning | |||||
| 15 | Bügel | 2 | 13111258181 | Entfallen | Shop at ECS Tuning | |||||
| 16 | Düse | 50/115 | 1 | 12/1973 | 13111259599 | Entfallen | Shop at ECS Tuning | |||
| 17 | Schwimmernadelventil | 2 | 13111258180 | $32.09 | Shop at ECS Tuning | |||||
| 18 | Dichtring | 2 | 13111258213 | Entfallen | Shop at ECS Tuning | |||||
| 19 | Dichtring | 2 | 13111258179 | $0.25 | Entfallen | Shop at ECS Tuning | ||||
| 20 | Rohr | 1 | 13111258214 | Entfallen | Shop at ECS Tuning | |||||
| 21 | Kappe | 1 | 12/1973 | 13111260921 | Entfallen | Shop at ECS Tuning | ||||
| 22 | Schwimmergehäuse | 2 | 13111258285 | Entfallen | Shop at ECS Tuning | |||||
| 23 | Satz Membrane | 1 | 13111709154 | $36.33 | Entfallen | Shop at ECS Tuning | ||||
| 24 | Satz Schwimmer | 2 | 13111709151 | $63.40 | Entfallen | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
