Drosselklappenstutzen for BMW 3 Series E36 316i (1994)

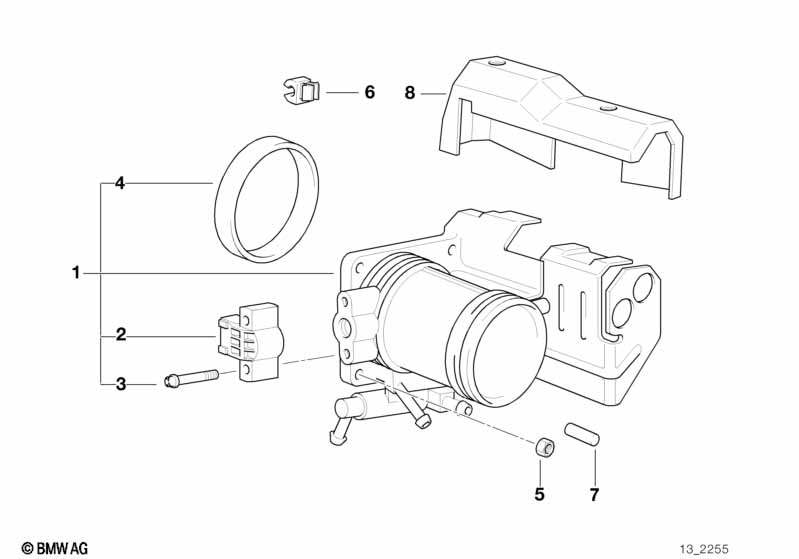

This Drosselklappenstutzen technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drosselklappenstutzen | D=55MM | 1 | 07/1994 | 13541734719 | Entfallen, +Pfand | Shop at ECS Tuning | |||
| 02 | Drosselklappenschalter | 4 KOHM | 1 | 09/1995 | 13631721456 | +Pfand | Shop at ECS Tuning | |||
| 03 | Linsenschraube | M4X2,5 | 2 | 09/1995 | 13541726918 | $5.50 | Shop at ECS Tuning | |||
| 04 | Profildichtung | 1 | 09/1995 | 13541734844 | Shop at ECS Tuning | |||||
| 05 | Sechskantmutter mit Scheibe | M6-8-ZNNIV SI | 4 | 09/1995 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 06 | Nippel | 1 | 09/1995 | 13541288013 | $0.53 | Entfallen | Shop at ECS Tuning | |||
| 07 | Verschlusskappe | D=11,5MM | 1 | 09/1995 | 13711289345 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Aktivkohlefilter und Katalysator |
=Ja =Ja |
|||||||||
| 07 | Verschlusskappe | D=7,0MM | 1 | 09/1995 | 11611727176 | $3.39 | Shop at ECS Tuning | |||
| 08 | Abdeckung | 1 | 09/1995 | 13541247753 | $11.38 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
