Einspritzpumpe Diesel for BMW 5 Series E28 524td

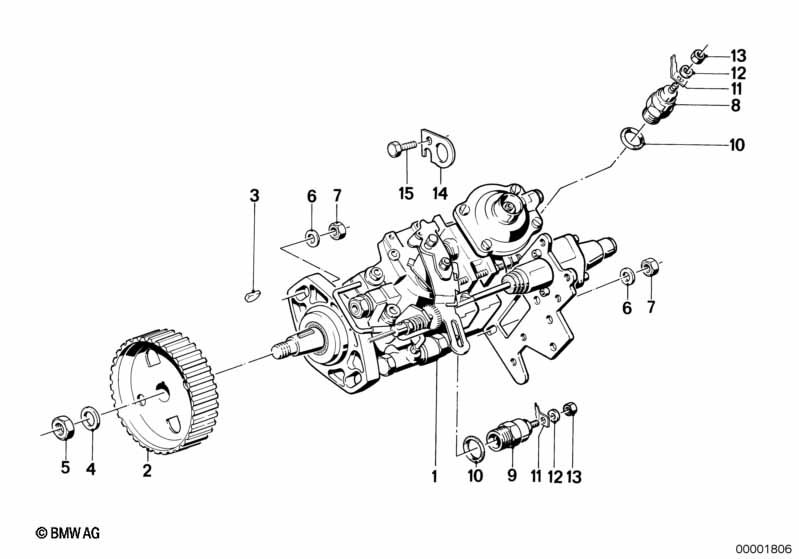

This Einspritzpumpe Diesel technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | *FG 324d 1993719 | |||||||||
| 01 | Einspritzpumpe | 1 | 01/1987 | 13511288690 | $1595.88 | Entfallen | Shop at ECS Tuning | |||
| 01 | Einspritzpumpe | 1 | 13511288690 | $1595.88 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Einspritzpumpe Diesel | VP-15 | 1 | 01/1987 | 13512242190 | $3760.92 | Entfallen | Shop at ECS Tuning | ||
| 02 | Zahnriemenrad | 1 | 13521287469 | $99.70 | Shop at ECS Tuning | |||||
| 03 | Scheibenfeder | 1 | 13511288587 | $4.50 | Shop at ECS Tuning | |||||
| 04 | Unterlegscheibe | A13/HV-ZNS | 1 | 12/1987 | 07119901766 | $0.30 | Entfallen | Shop at ECS Tuning | ||
| 04 | Scheibe | 12-300 HV-ZNS3 | 1 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Sechskantmutter | M12 | 1 | 07119922139 | $2.09 | Entfallen | Shop at ECS Tuning | |||
| 06 | Unterlegscheibe | A8,4 | 4 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Sechskantmutter | M8-8-ZNS3 | 4 | 12/1987 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Sechskantmutter | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Magnetschalter | ELAB | 1 | 13512243295 | $150.00 | Shop at ECS Tuning | ||||
| 09 | Magnetschalter | KSB | 1 | 13511288581 | $247.30 | Entfallen | Shop at ECS Tuning | |||
| 10 | O-Ring | 8,5X2,5 | 2 | 13511705170 | $3.11 | Shop at ECS Tuning | ||||
| 11 | Flachstecker | 6,3MM | 2 | 12522240893 | $0.28 | Entfallen | Shop at ECS Tuning | |||
| 12 | Federscheibe | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Sechskantmutter | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Halter | 1 | 12521287771 | Entfallen | Shop at ECS Tuning | |||||
| 15 | ISA-Schraube | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 524td Einspritzpumpe Diesel?
- This technical diagram illustrates the Einspritzpumpe Diesel within the Kraftstoffaufbereitung group for the 5 Series E28 524td. It provides a detailed exploded view of the components, identifying key parts such as the Einspritzpumpe (Part #13511288690).
- Which models use the hardware listed in this Einspritzpumpe Diesel?
- The hardware and components featured in the Einspritzpumpe Diesel are specific to the 5 Series E28 524td. These technical specifications ensure that parts like the Einspritzpumpe (13511288690) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Einspritzpumpe Diesel assembly?
- Each item in the Einspritzpumpe Diesel corresponds to the numbered list below the illustration. For the 5 Series E28 524td, you can identify the Einspritzpumpe by locating its position on the schematic, which then links to the official BMW part number 13511288690 for the Kraftstoffaufbereitung section.
