Luftmengenmesser for BMW 3 Series E36 316i (1994)

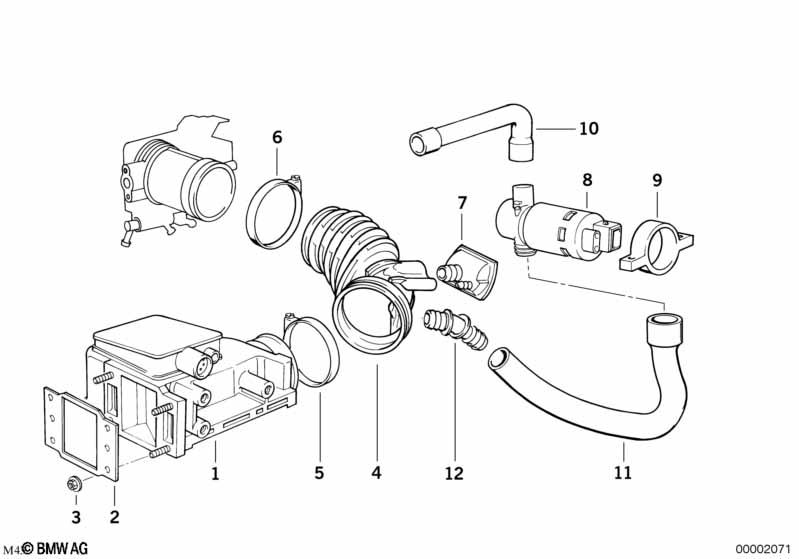

This Luftmengenmesser technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Katalysator |
=Nein |
|||||||||
| 01 | Luftmengenmesser mit Co-Poti | 1 | 13621734653 | $713.36 | SI 130290256, SI 130294796 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Katalysator |
=Ja |
|||||||||
| 01 | Luftmengenmesser ohne Co-Poti | 1 | 13627547975 | Shop at ECS Tuning | ||||||
| 02 | Dichtrahmen | 1 | 13711705064 | $0.70 | Shop at ECS Tuning | |||||
| 03 | Sechskantmutter selbstsichernd | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Faltenbalg | 1 | 13711739575 | $54.97 | Shop at ECS Tuning | |||||
| 05 | Schlauchschelle | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 06 | Schlauchschelle | L65-72 | 1 | 07129952127 | $1.89 | Shop at ECS Tuning | ||||
| 07 | Resonator | 1 | 13711247136 | $10.84 | Shop at ECS Tuning | |||||
| 08 | Leerlaufregelventil T-Form | 1 | 09/1995 | 13411433627 | $218.55 | Shop at ECS Tuning | ||||
| 09 | Gummilager | 1 | 09/1995 | 13411247135 | $3.65 | Shop at ECS Tuning | ||||
| 10 | Luftschlauch | HC1/2 | 1 | 09/1995 | 13411739649 | $8.17 | SI 120294826 | Shop at ECS Tuning | ||
| 11 | Luftschlauch | 1 | 09/1995 | 13411247641 | $8.55 | Shop at ECS Tuning | ||||
| 12 | Winkelstück | 1 | 13411722944 | $0.53 | Shop at ECS Tuning | |||||
Ergänzungen
- SI = Service-Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 316i Luftmengenmesser?
- This technical diagram illustrates the Luftmengenmesser within the Kraftstoffaufbereitung group for the 3 Series E36 316i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Luftmengenmesser mit Co-Poti (Part #13621734653).
- Which models use the hardware listed in this Luftmengenmesser?
- The hardware and components featured in the Luftmengenmesser are specific to the 3 Series E36 316i produced during 1994. These technical specifications ensure that parts like the Luftmengenmesser mit Co-Poti (13621734653) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Luftmengenmesser assembly?
- Each item in the Luftmengenmesser corresponds to the numbered list below the illustration. For the 3 Series E36 316i, you can identify the Luftmengenmesser mit Co-Poti by locating its position on the schematic, which then links to the official BMW part number 13621734653 for the Kraftstoffaufbereitung section.
