Kraftstofftank Metall for BMW 7 Series E32 750iL (1990)

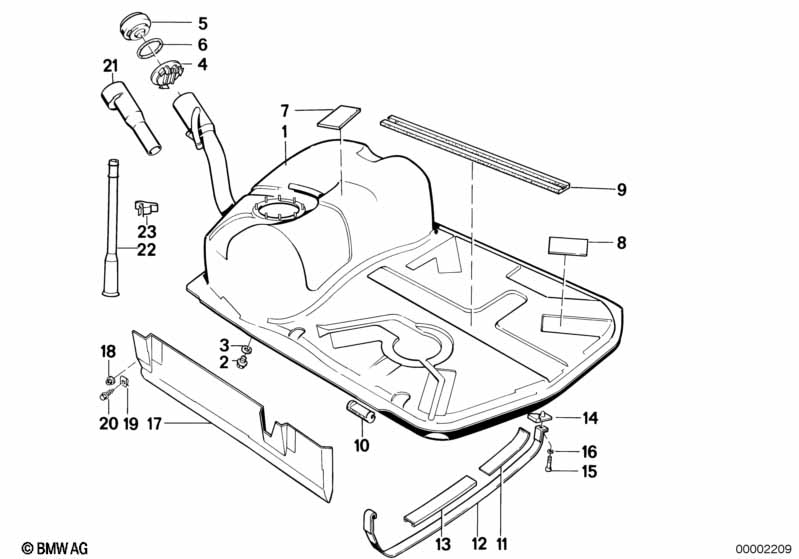

This Kraftstofftank Metall technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Niveauregulierung |
=Ja |
|||||||||
| 01 | Kraftstofftank Metall | 102L | 1 | 16111178944 | $507.02 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Saudi-Arabien Ausführung |
=Ja |
|||||||||
| 01 | Kraftstofftank Metall | 91L | 1 | 16111179353 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan und Niveauregulierung |
L807A=Ja =Ja |
|||||||||
| 01 | Kraftstofftank Metall | 90L | 1 | 16111178908 | $507.02 | Entfallen | Shop at ECS Tuning | |||
| 02 | Verschlussschraube | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||

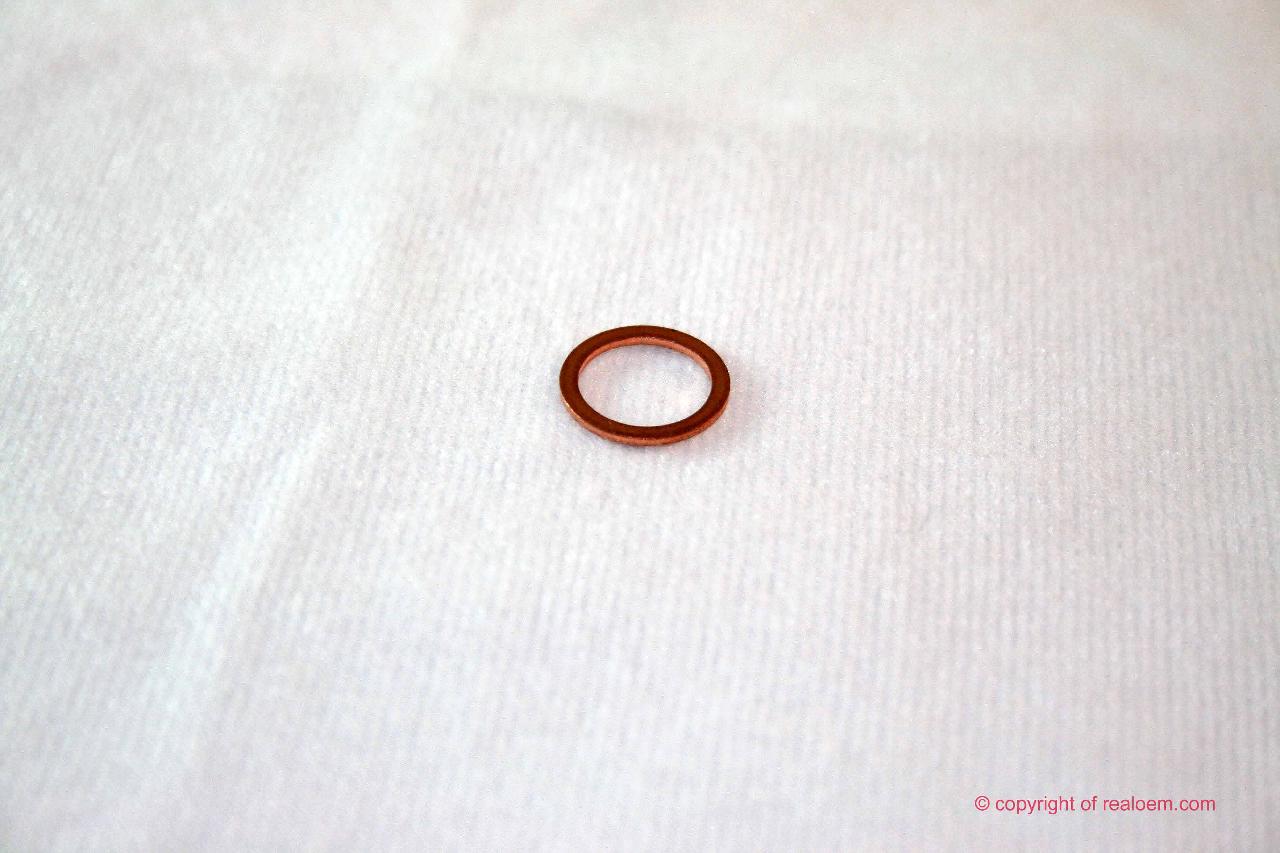

| 03 | Dichtring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Entfall Katalysator |
S199A=Nein |
|||||||||
| 04 | bleifrei-Einsatz | 1 | 16111180157 | $5.12 | Shop at ECS Tuning | |||||
| 05 | Tankverschluss nicht abschliessbar | 1 | 16116750564 | $26.83 | Shop at ECS Tuning | |||||
| 06 | Dichtgummi | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 07 | Unterlage | 80X50X10 | 6 | 16111178676 | $1.08 | Entfallen | Shop at ECS Tuning | |||
| 08 | Unterlage | 90X55X7 | 4 | 16111177873 | $7.52 | Shop at ECS Tuning | ||||
| 10 | Kantenschutz | 4 | 16111179038 | $5.00 | Shop at ECS Tuning | |||||
| 11 | Unterlage | 660MM | X | 16111178667 | $7.52 | Shop at ECS Tuning | ||||
| 12 | Spannband rechts | 90L | 1 | 16111179161 | $21.02 | Shop at ECS Tuning | ||||
| 12 | Spannband links | 90L | 1 | 16111179162 | $21.02 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Niveauregulierung |
=Ja |
|||||||||
| 12 | Spannband rechts | 102L | 1 | 16111179163 | Shop at ECS Tuning | |||||
| 12 | Spannband links | 102L | 1 | 16111179164 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Saudi-Arabien Ausführung |
=Ja |
|||||||||
| 12 | Spannband rechts | 91L | 1 | 16111179466 | $25.46 | Shop at ECS Tuning | ||||
| 12 | Spannband links | 91L | 1 | 16111179469 | $25.46 | Shop at ECS Tuning | ||||
| 13 | Unterlage | 460MM | 2 | 16111178743 | $3.23 | Shop at ECS Tuning | ||||
| 14 | Distanzstück | 2 | 16111179032 | $1.95 | Shop at ECS Tuning | |||||

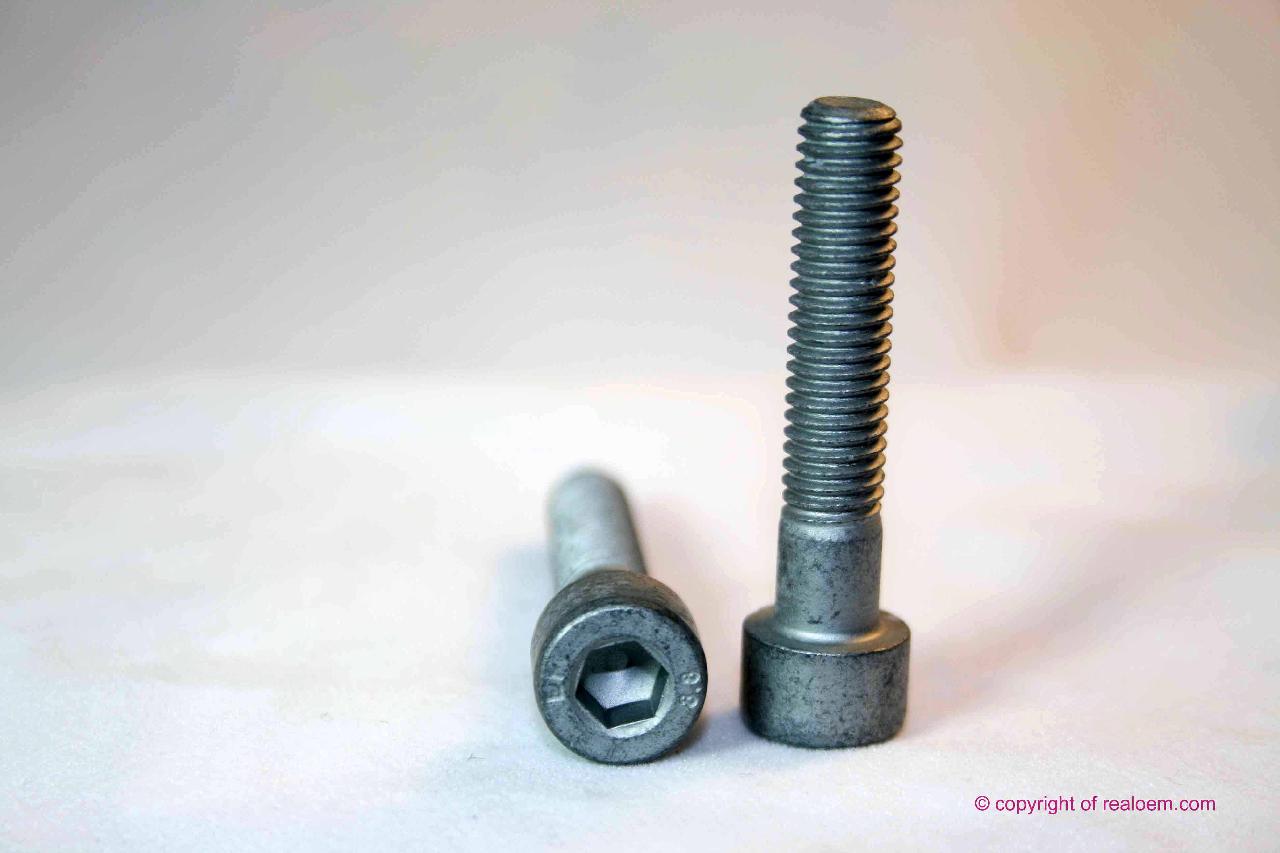

| 15 | Zylinderschraube | M8X40-8.8-ZNS3 | 2 | 07119902984 | $1.93 | Shop at ECS Tuning | ||||
| 16 | Unterlegscheibe | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Niveauregulierung |
=Ja |
|||||||||
| 17 | Wärmeschutzblech | ALU | 1 | 16111179434 | $19.92 | Entfallen | Shop at ECS Tuning | |||
| 18 | Kombimutter | 4 | 07147305178 | Shop at ECS Tuning | ||||||
| 19 | Blechmutter | ST 4,8-4-ZNS3 | 2 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Linsenschraube | M5X10 | 2 | 07149149399 | $0.25 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 21 | Trichter | 1 | 16121150748 | $8.60 | Shop at ECS Tuning | |||||
| 22 | Rohr | 435 | 1 | 10/1987 | 16131179986 | $7.93 | Shop at ECS Tuning | |||
| 23 | Klammer | 1 | 16131179256 | $1.15 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
