Ausgleichsbehälter/Leitungen for BMW 7 Series E32 750iL (1990)

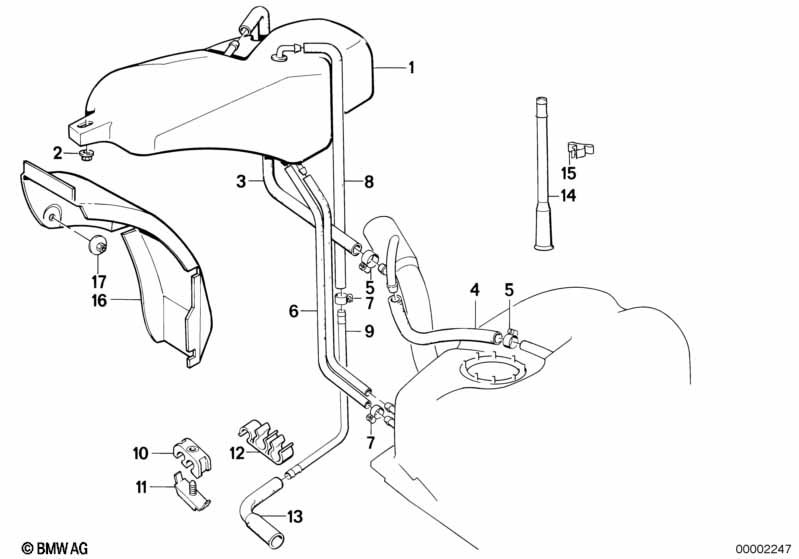

This Ausgleichsbehälter/Leitungen technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Entfall Katalysator |
S199A=Ja |
|||||||||
| 01 | Ausgleichsbehälter | 1 | 16131179025 | $71.73 | Shop at ECS Tuning | |||||
| 02 | Sechskantmutter mit Scheibe | M6 | 1 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 02 | Kombimutter | 1 | 07147305178 | Shop at ECS Tuning | ||||||
| 03 | Schlauch | 10X16MM | X | 16121177108 | $16.37 | Shop at ECS Tuning | ||||
| 04 | Formschlauch | 1 | 16111177874 | $26.57 | Shop at ECS Tuning | |||||
| 05 | Schlauchschelle | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Kraftstoffschlauch | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 07 | Schlauchschelle | L=9-12 | X | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Schlauch | 1 | 16131179180 | $9.02 | Shop at ECS Tuning | |||||
| 09 | Entlüftungsleitung | 1 | 16131179517 | $21.58 | Shop at ECS Tuning | |||||
| 10 | Klemmstück | 2 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 11 | Halter | 2 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 14 | Rohr | 435 | 1 | 10/1987 | 16131179986 | $7.93 | Shop at ECS Tuning | |||
| 15 | Klammer | 1 | 16131179256 | $1.15 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Ausgleichsbehälter/Leitungen?
- This technical diagram illustrates the Ausgleichsbehälter/Leitungen within the Kraftstoffversorgung group for the 7 Series E32 750iL produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Ausgleichsbehälter (Part #16131179025).
- Which models use the hardware listed in this Ausgleichsbehälter/Leitungen?
- The hardware and components featured in the Ausgleichsbehälter/Leitungen are specific to the 7 Series E32 750iL produced during 1990. These technical specifications ensure that parts like the Ausgleichsbehälter (16131179025) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ausgleichsbehälter/Leitungen assembly?
- Each item in the Ausgleichsbehälter/Leitungen corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the Ausgleichsbehälter by locating its position on the schematic, which then links to the official BMW part number 16131179025 for the Kraftstoffversorgung section.
