Aktivkohlefilter/Leitungen for BMW 7 Series E32 750iL (1990)

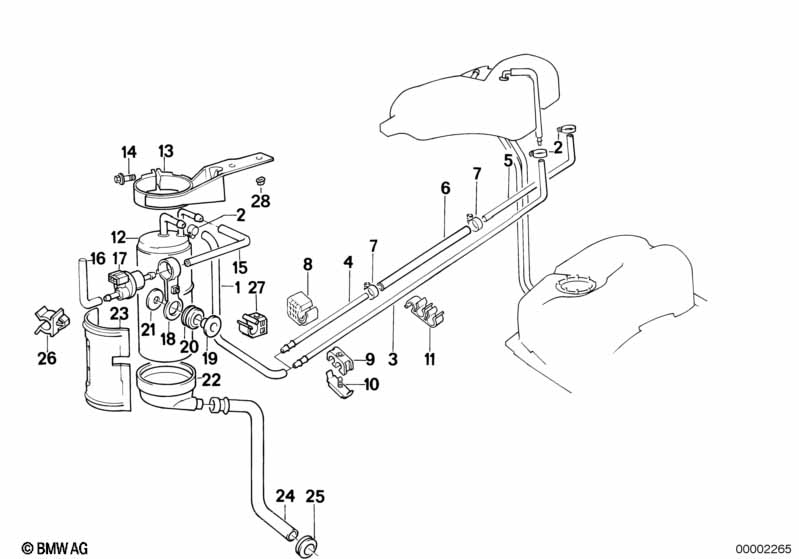

This Aktivkohlefilter/Leitungen technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | nur passend zu Fahrzeugen ohne Katalysator |
|||||||||
| Für Fahrzeuge mit Entfall Katalysator |
S199A=Nein |
|||||||||
| 01 | Formschlauch | 1 | 16131179773 | $21.20 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Schlauchschelle | L=9-12 | X | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Entlüftungsleitung | 1 | 16131179517 | $21.58 | Shop at ECS Tuning | |||||
| 06 | Kraftstoffschlauch | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 09 | Klemmstück | 2 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 10 | Halter | 2 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 12 | Aktivkohlefilter | 1 | 16131178956 | $131.82 | Shop at ECS Tuning | |||||
| 13 | Halter Aktivkohlefilter | 1 | 16131179567 | $7.67 | Entfallen | Shop at ECS Tuning | ||||
| 14 | Sechskantschraube mit Scheibe | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Kraftstoffschlauch | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||

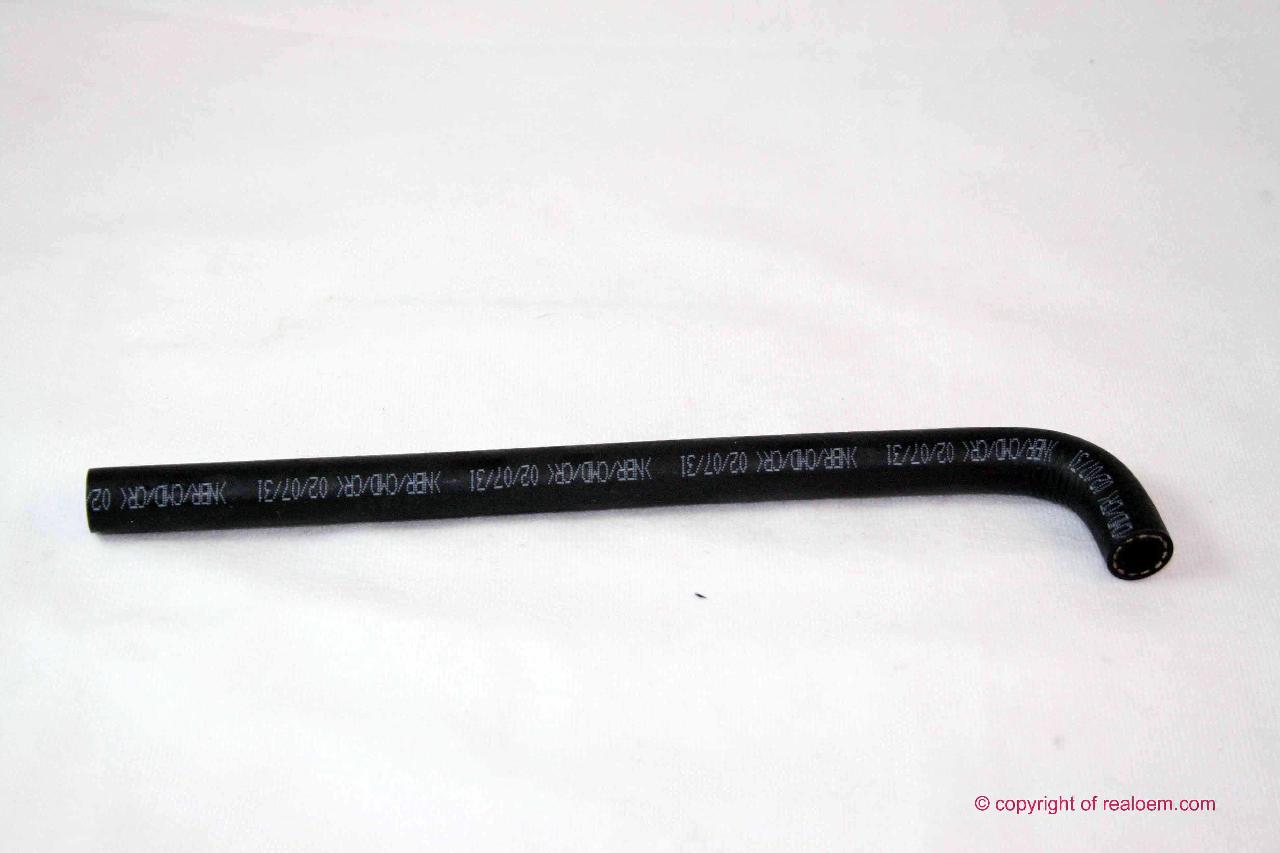

| 16 | Kraftstoffschlauch | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 17 | Tankentlüftungsventil | BOSCH | 1 | 13901711395 | $155.67 | Shop at ECS Tuning | ||||
| 18 | Halter Tankentlüftungsventil | 1 | 13901716098 | $5.88 | Entfallen | Shop at ECS Tuning | ||||
| 19 | Hülse | 1 | 13901716097 | $4.00 | Shop at ECS Tuning | |||||
| 20 | Gummitülle | 1 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 21 | Unterlegscheibe | 1 | 13901716096 | $5.69 | Entfallen | Shop at ECS Tuning | ||||

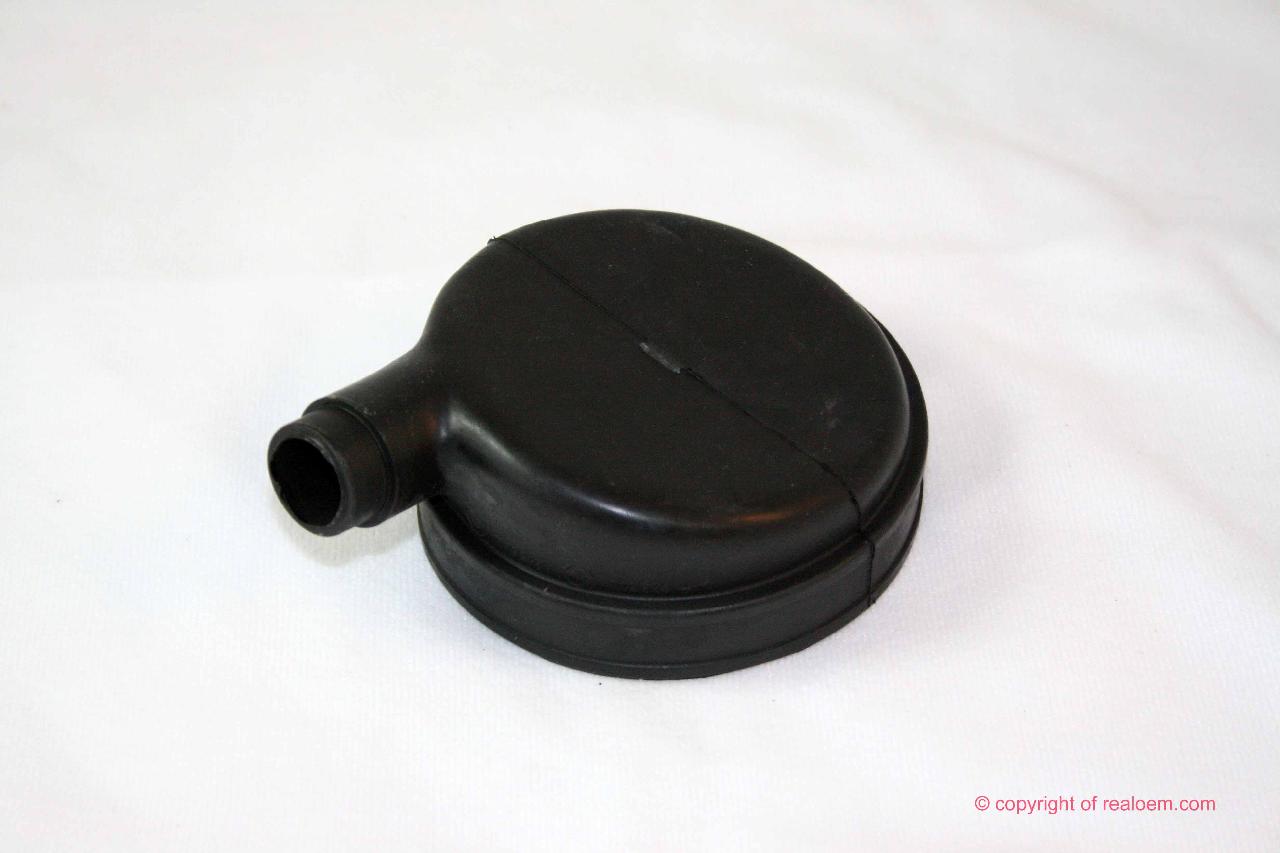

| 22 | Anschlussstück | 1 | 16111179448 | $14.58 | Shop at ECS Tuning | |||||
| 23 | Wärmeschutzblech | AKF | 1 | 16131179737 | $9.00 | Entfallen | Shop at ECS Tuning | |||
| 24 | Rohr | 1 | 16131179757 | $25.73 | Entfallen | Shop at ECS Tuning | ||||
| 25 | Gummitülle | 1 | 21522072270 | $1.09 | Shop at ECS Tuning | |||||
| 26 | Kabelhalter | D=16,8MM | 1 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
