Ausgleichsbehälter/Leitungen for BMW 7 Series E32 750iL (1990)

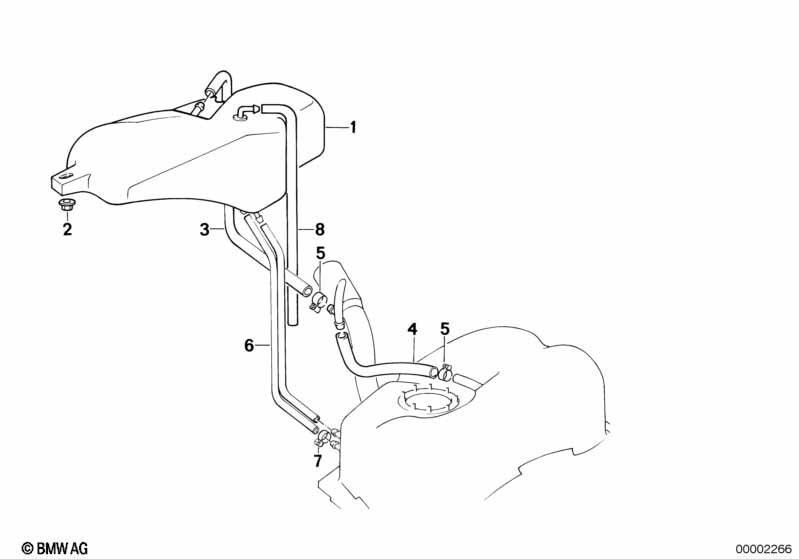

This Ausgleichsbehälter/Leitungen technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Entfall Katalysator |
S199A=Nein |
||||||||
| 01 | Ausgleichsbehälter | 1 | 16131179025 | $71.73 | Shop at ECS Tuning | |||||
| 02 | Kombimutter | 1 | 07147305178 | Shop at ECS Tuning | ||||||
| 03 | Schlauch | 10X16MM | X | 16121177108 | $16.37 | Shop at ECS Tuning | ||||
| 04 | Formschlauch | 1 | 16111177874 | $26.57 | Shop at ECS Tuning | |||||
| 05 | Schlauchschelle | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Formschlauch | 1 | 16131179773 | $21.20 | Entfallen | Shop at ECS Tuning | ||||
| 07 | Schlauchschelle | L=9-12 | X | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Schlauch | 1 | 16131179180 | $9.02 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
