Kraftstoffversorgung/Doppelfilter for BMW 7 Series E32 750iL (1990)

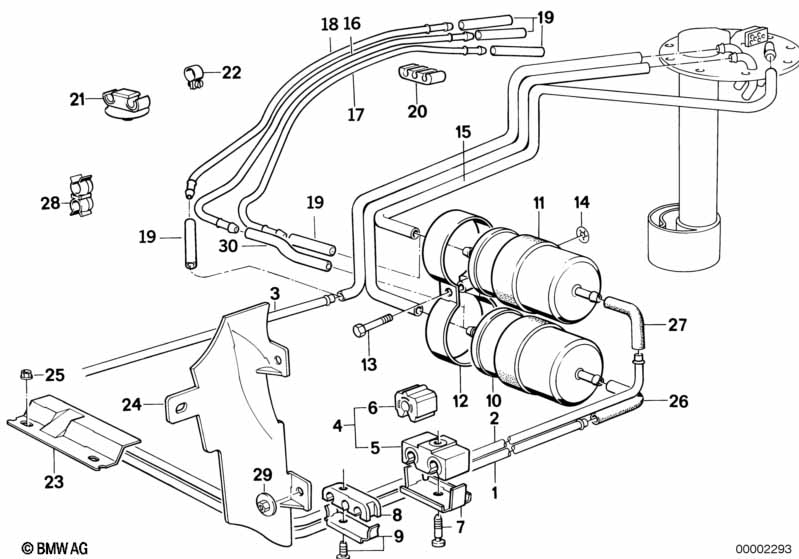

This Kraftstoffversorgung/Doppelfilter technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vorlaufleitung | 1 | 16121179515 | $40.50 | Shop at ECS Tuning | |||||
| 02 | Vorlaufleitung | 1 | 16121179516 | $40.50 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Rücklaufleitung | 1 | 16121179384 | $40.50 | Entfallen | Shop at ECS Tuning | ||||
| 05 | Halter | 3 | 16121179155 | $3.62 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Gummipuffer | 6 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 07 | Halter | 3 | 37206778082 | $1.41 | Shop at ECS Tuning | |||||
| 08 | Klemmstück | X | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 09 | Halter | X | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 10 | Kraftstofffilter | 2 | 13321720101 | Shop at ECS Tuning | ||||||
| 11 | Dämpfungsring | D=55MM | 2 | 13321734056 | $2.73 | Shop at ECS Tuning | ||||
| 12 | Doppelschelle | 1 | 16121178791 | $21.42 | Entfallen | Shop at ECS Tuning | ||||
| 13 | Sechskantschraube | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 14 | Sicherungsscheibe | M6 | 1 | 54318246804 | $5.46 | Shop at ECS Tuning | ||||
| 16 | Rohr | 1 | 11/1988 | 16121180265 | $6.57 | Shop at ECS Tuning | ||||
| 17 | Rohr | 1 | 11/1988 | 16121180266 | $7.03 | Entfallen | Shop at ECS Tuning | |||
| 18 | Rohr | 1 | 11/1988 | 16121180267 | $4.18 | Shop at ECS Tuning | ||||
| 19 | Kraftstoffschlauch | 8X13MM | X | 11/1988 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 20 | Halter Kraftstoffleitung | 2 | 11/1988 | 16121180262 | $2.15 | Shop at ECS Tuning | ||||
| 21 | Rohrleitungsclip | 1 | 16121179396 | $1.08 | Entfallen | Shop at ECS Tuning | ||||
| 22 | Schlauchschelle | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 23 | Steinschlagschutz links | ALU | 1 | 16121181349 | $10.62 | Shop at ECS Tuning | ||||
| 24 | Schutzblech links | 1 | 16121179600 | $16.70 | Entfallen | Shop at ECS Tuning | ||||
| 24 | Steinschlagschutz rechts | 1 | 16121179601 | $26.33 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Elektronische Dämpfer Control (EDC) |
=Ja |
|||||||||
| 24 | Steinschlagschutz links | 1 | 01/1990 | 16121181935 | $69.50 | Entfallen | Shop at ECS Tuning | |||
| 24 | Steinschlagschutz rechts | 1 | 01/1990 | 16121181936 | $69.50 | Entfallen | Shop at ECS Tuning | |||
| 25 | Kunststoffmutter Grobgewindebolzen | M6 | 5 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 26 | Schlauch | 1 | 16121179827 | $10.13 | Shop at ECS Tuning | |||||
| 27 | Kraftstoffschlauch | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 28 | Schlauchhalter | 1 | 13311287351 | $1.73 | Shop at ECS Tuning | |||||
| 29 | Kunststoffmutter | 3 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 30 | Schlauch | 1 | 16121180264 | $8.35 | Entfallen | Shop at ECS Tuning | ||||
