Ansaugvorrichtung mit Pumpe for BMW 7 Series E32 750iL (1990)

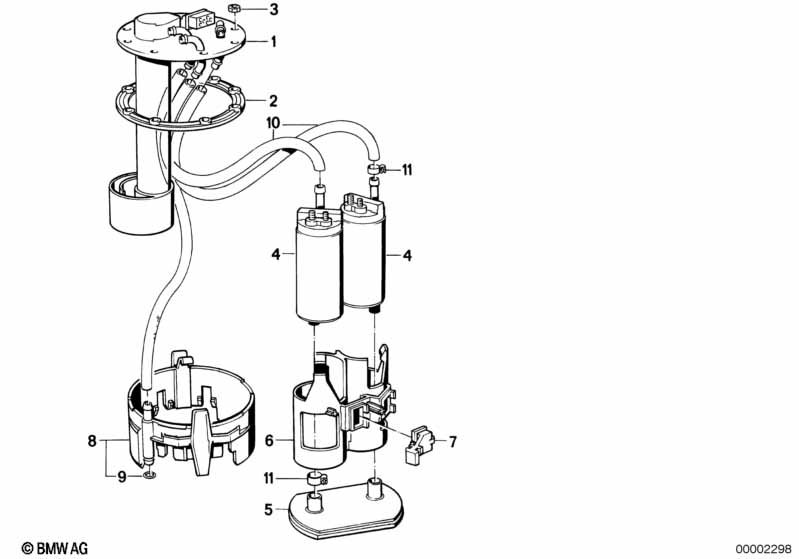

This Ansaugvorrichtung mit Pumpe technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tauchrohrgeber für Metalltank | 90L/275MM | 1 | 16141180892 | Entfallen | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Rep.Satz Tauchrohrgeber/Kraftstoffpumpe | 1 | 16147159349 | $9.77 | Shop at ECS Tuning | |||||
| 01 | Tauchrohrgeber für Metalltank | 91L-102L/295MM | 1 | 16141180893 | $194.57 | Entfallen | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Rep.Satz Tauchrohrgeber/Kraftstoffpumpe | 1 | 16147159349 | $9.77 | Shop at ECS Tuning | |||||
| 02 | Dichtgummi | 1 | 16141178783 | $6.70 | Shop at ECS Tuning | |||||
| 03 | Sechskantmutter | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Kraftstoffpumpe | 2 | 16146768653 | $330.09 | Shop at ECS Tuning | |||||
| 05 | Sieb | 1 | 16141179703 | $75.52 | Shop at ECS Tuning | |||||
| 06 | Halter | 1 | 16111179702 | $19.67 | Shop at ECS Tuning | |||||
| 07 | Gummilager | 4 | 16141178877 | $2.03 | Shop at ECS Tuning | |||||
| 08 | Halter Kraftstoffpumpe | 1 | 16141179119 | $25.83 | Shop at ECS Tuning | |||||
| 09 | O-Ring | 7X1,5 | 1 | 16141179153 | $0.89 | Shop at ECS Tuning | ||||
| 10 | Kraftstoffschlauch | 8X13 | X | 16121180040 | $25.73 | Shop at ECS Tuning | ||||
| 11 | Schlauchschelle | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
