Kraftstoffleitung/Befestigungsteile for BMW 2 Series F45 Active Tourer 218d (2015)

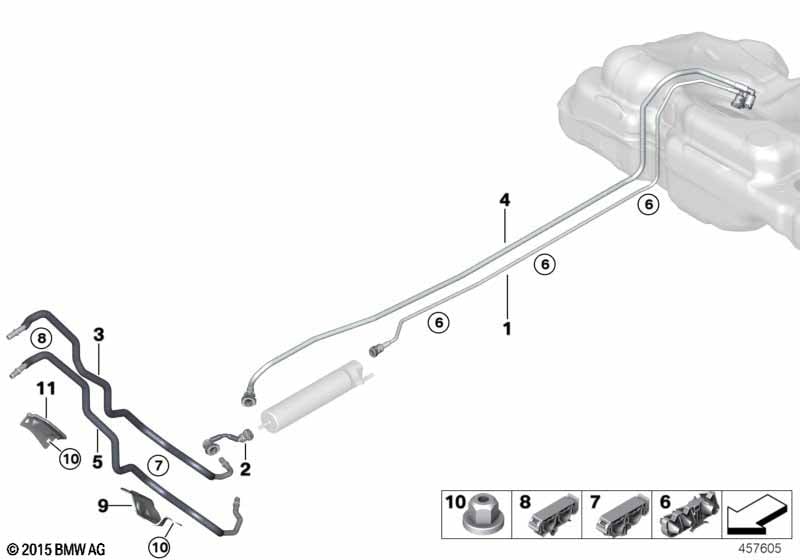

This Kraftstoffleitung/Befestigungsteile technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kraftstoff-Vorlaufleitung | 1 | 03/2018 | 16117300622 | Shop at ECS Tuning | |||||
| 02 | Kraftstoff-Vorlaufleitung Filter | 1 | 05/2015 | 16117301811 | Shop at ECS Tuning | |||||
| 03 | Kraftstoff-Vorlaufleitung vorn | 1 | 03/2018 | 16129453510 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Kraftstoff-Rücklaufleitung vorn | 1 | 03/2018 | 16127470990 | Shop at ECS Tuning | |||||
| -- | Kraftstoff-Rücklaufleitung | 1 | 03/2018 | 16127470991 | Shop at ECS Tuning | |||||
| 04 | Kraftstoff-Rücklaufleitung | 1 | 03/2018 | 16117300642 | Shop at ECS Tuning | |||||
| 05 | Kraftstoff-Rücklaufleitung vorn | 1 | 11/2017 | 16127470990 | Shop at ECS Tuning | |||||
| 05 | Kraftstoff-Rücklaufleitung vorn | 1 | 03/2018 | 16127323845 | Shop at ECS Tuning | |||||
| 06 | Leitungsclip zweifach | D8,12 | 4 | 12/2014 | 03/2018 | 16127258752 | Shop at ECS Tuning | |||
| 07 | Leitungsclip zweifach | D14,14 | 2 | 03/2018 | 16127328358 | Shop at ECS Tuning | ||||
| 08 | Leitungsclip zweifach | D14,14 | 2 | 03/2018 | 16127328357 | Shop at ECS Tuning | ||||
| 09 | Schutzblech Kraftstoffleitungen | 1 | 10/2014 | 11/2017 | 16117415744 | Shop at ECS Tuning | ||||
| 09 | Schutzblech Kraftstoffleitungen | 1 | 10/2014 | 03/2018 | 16127497998 | Shop at ECS Tuning | ||||
| 10 | Kunststoffmutter Grobgewindebolzen | M6 | 3 | 10/2014 | 03/2018 | 16131176747 | $0.53 | Shop at ECS Tuning | ||
