Kühlsystem-Kühlmittelschläuche for BMW 3 Series E91 LCI 335xi (2012)

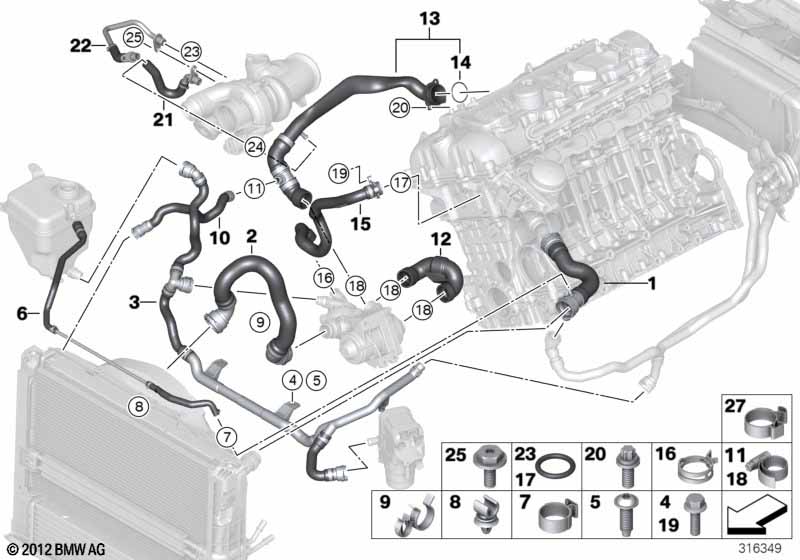

This Kühlsystem-Kühlmittelschläuche technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Automatikgetriebe und Sportgetriebe mit Doppelkupplung und Standheizung |
S205A=Nein S2TCA=Nein S536A=Ja |
||||||||
| 01 | Schlauch Motor Vorlauf-Kühler oben | 1 | 17127540127 | $56.20 | +Pfand | Shop at ECS Tuning | ||||
| 02 | Schlauch Kühler unten-Thermostat | 1 | 17127599450 | +Pfand | Shop at ECS Tuning | |||||
| 03 | Leitung Heizungsrücklauf-Thermostat- | 1 | 17127599459 | +Pfand | Shop at ECS Tuning | |||||
| bestehend aus Kunststoffrohr schwarz und Gummischlauch |
||||||||||
| 04 | Sechskantschraube mit Flansch | M6X20 | 3 | 07119905546 | $6.73 | Shop at ECS Tuning | ||||
| 06 | Entlüftungsleitung Kühler oben | 1 | 17127599452 | +Pfand | Shop at ECS Tuning | |||||
| 07 | Schlauchschelle | 13,2-15,7 | 3 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Clip | D=8MM | 2 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Schlauchhalter | 1 | 64216918118 | $1.53 | Shop at ECS Tuning | |||||
| 10 | Schlauch Kühlmodul Niedertemperatur- | 1 | 17127548203 | $33.77 | +Pfand | Shop at ECS Tuning | ||||
| 11 | Schlauchschelle | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Schlauch Thermostat-Kühlmittelpumpe | 1 | 11537545665 | $18.87 | Shop at ECS Tuning | |||||
| 13 | Leitung Motorvorlauf-Kühlmittelpumpe | 1 | 11537588880 | +Pfand | Shop at ECS Tuning | |||||
| 14 | Dichtung | 1 | 11537584829 | Shop at ECS Tuning | ||||||
| 15 | Schlauch Zylinderkopf-Thermostat | 1 | 11537584549 | +Pfand | Shop at ECS Tuning | |||||
| 16 | Schlauchschelle | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 17 | O-Ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 18 | Schlauchschelle | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 19 | Sechskantschraube mit Scheibe | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 20 | ASA-Schraube | M6X16 ZNNIV SI | 3 | 07129905905 | Shop at ECS Tuning | |||||
| 21 | Kühlmittel-Vorlaufleitung | 1 | 11537583900 | Shop at ECS Tuning | ||||||
| 22 | Kühlmittel-Rücklaufleitung | 1 | 11537583903 | +Pfand | Shop at ECS Tuning | |||||
| 23 | O-Ring | 12X1,5 | 3 | 11/2023 | 11537590575 | Entfallen | Shop at ECS Tuning | |||
| 23 | O-Ring | 11X1,5 | 3 | 07141696931 | Shop at ECS Tuning | |||||
| 24 | Schlauchklemme | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 25 | ISA-Schraube | M6X16-8.8-ZNS3 | 2 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
- Entfallen = nicht mehr lieferbar.
