Kühlsystem - Kühlmittelschläuche Motor for BMW 3 Series G20 Limousine LCI 320dX (2025)

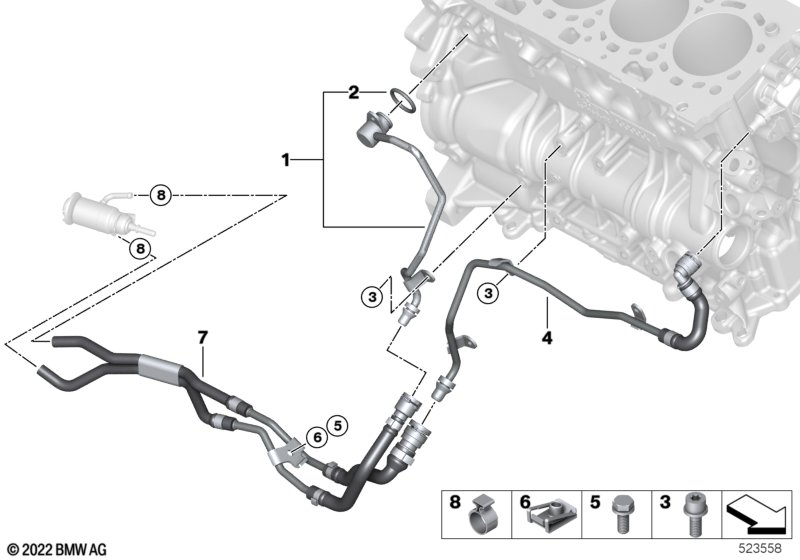

This Kühlsystem - Kühlmittelschläuche Motor technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Limousine LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Abgasnorm EU5 |
S161A=Nein |
|||||||||
| 01 | Leitung Zylinderkurbelgehäuse | 1 | 11538471773 | Shop at ECS Tuning | ||||||
| 02 | O-Ring | 16X2,5 | 1 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 03 | Torxschraube mit Scheibe | M6X16-8.8-ZNNIV | 5 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Leitung Kühlmittelpumpe | 1 | 11538580972 | Shop at ECS Tuning | ||||||
| 05 | Sechskantschraube mit Scheibe | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Clipmutter | M6 | 1 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Leitung SCR Dosiermodul-Kühlmittelpumpe | 1 | 17128476969 | Shop at ECS Tuning | ||||||
| 08 | Schlauchschelle | 10-12 | 2 | 32411131373 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Leitung SCR Dosiermodul-Kühlmittelpumpe | 1 | 17128476969 | Shop at ECS Tuning | ||||||
