Vorschalldämpfer for BMW 7 Series F02 730Li

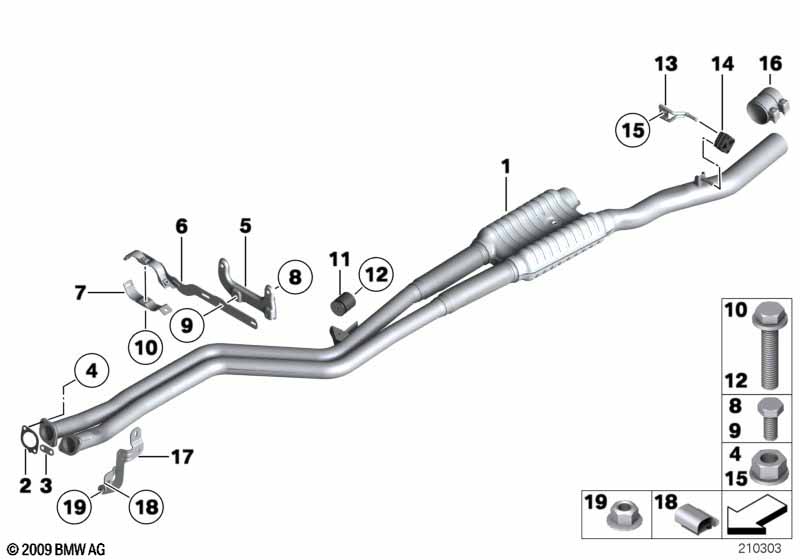

This Vorschalldämpfer technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Abgasrohre mit Vorschalldämpfer | 1 | 18307646917 | Shop at ECS Tuning | ||||||
| 02 | Flachdichtung | 2 | 18107549447 | $14.36 | Shop at ECS Tuning | |||||
| Für die Reparatur notwendig | ||||||||||

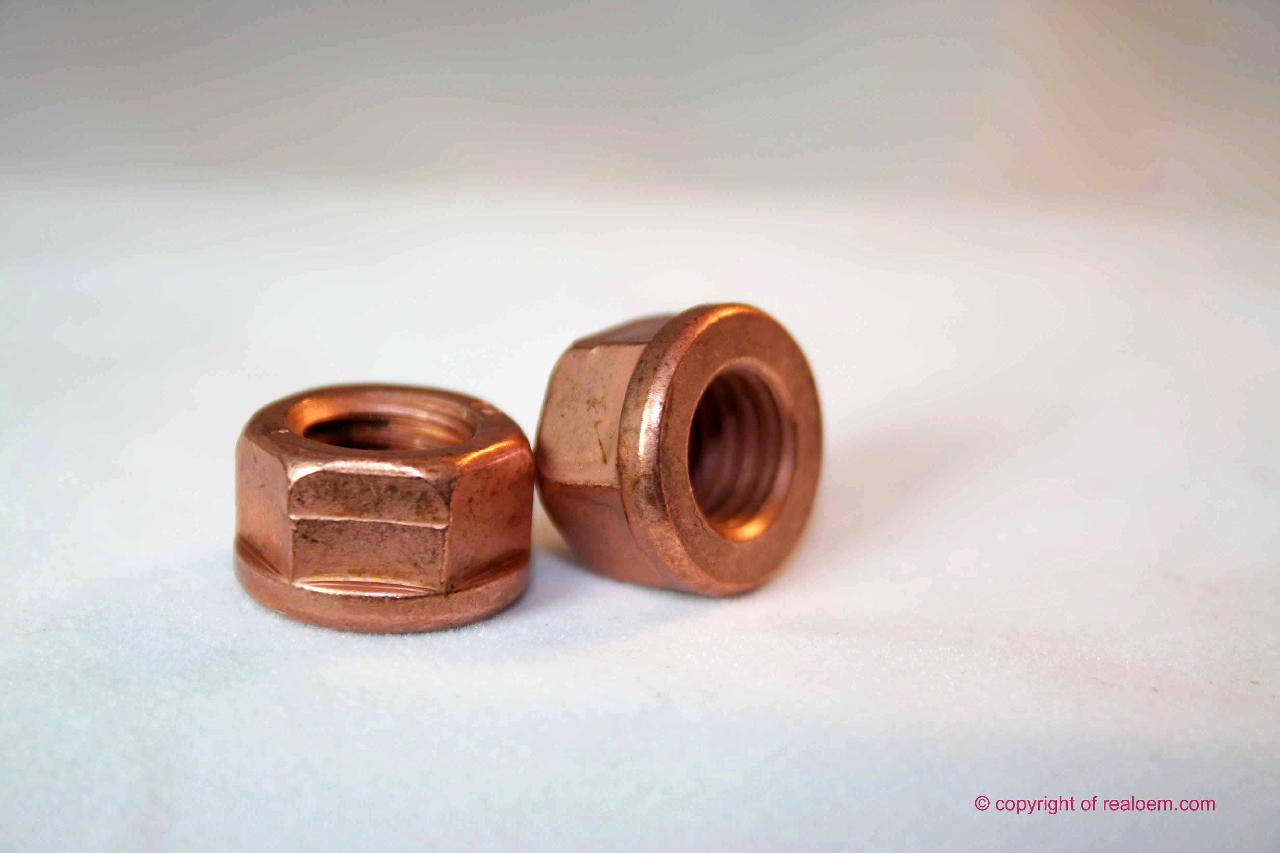

| -- | Sechskantmutter | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Verbindungsblech | 1 | 18207578220 | Shop at ECS Tuning | ||||||
| 04 | Sechskantmutter | M10 | 4 | 18307530972 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Halteblech | 1 | 18207578221 | Shop at ECS Tuning | ||||||
| 06 | Vorrohrhalter | 1 | 18207578222 | Shop at ECS Tuning | ||||||
| 07 | Schelle | 1 | 18207578223 | Shop at ECS Tuning | ||||||
| 08 | ASA-Schraube | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
| 09 | Sechskantschraube | M8X20- 8.8-ZNS3 | 2 | 07119906119 | $0.62 | Shop at ECS Tuning | ||||
| 10 | ASA-Schraube | M8X55-U1 | 1 | 07129905831 | $1.05 | Shop at ECS Tuning | ||||
| 11 | Schwingungstilger | 47 HZ | 1 | 13623419443 | Shop at ECS Tuning | |||||
| 12 | Bundschraube | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 13 | Halter Nachschalldämpfer links | 1 | 18207585348 | Shop at ECS Tuning | ||||||
| 14 | Gummiring | 1 | 18207585359 | Shop at ECS Tuning | ||||||
| 15 | Sechskantmutter | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 16 | Spannhülse | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 17 | Haltebügel | 1 | 18207578219 | Shop at ECS Tuning | ||||||
| 18 | Kabelklemme | 1 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 19 | Bundmutter | M8 | 1 | 18307597650 | Shop at ECS Tuning | |||||
