Ottopartikelfilter motornah for BMW MINI F66 JCW

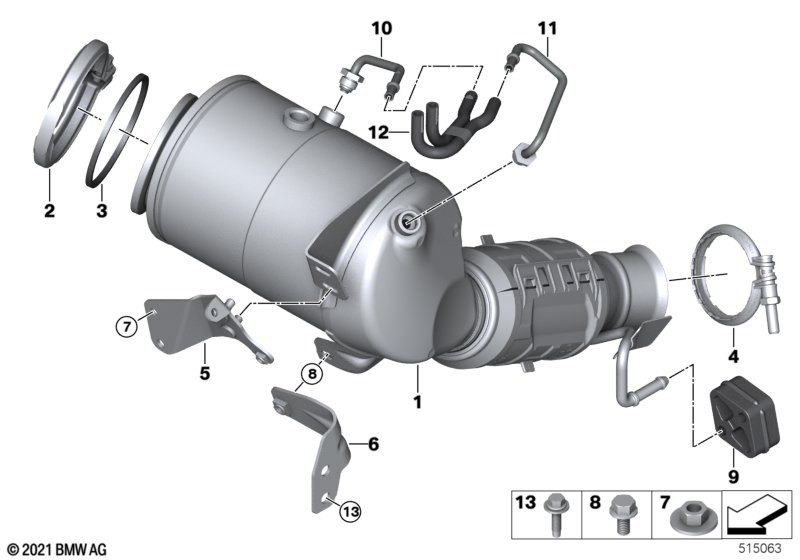

This Ottopartikelfilter motornah technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Abgasnorm EU6 rde II oder Abgasnorm JPN-WLTP 2024 |
S1DFA=Ja S1DXA=Ja |
|||||||||
| 01 | RP Ottopartikelfilter motornah | 1 | 18325B3E9E9 | NoS | Shop at ECS Tuning | |||||
| 02 | V-Bandschelle | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 03 | Dichtring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 04 | V-Bandschelle | D=70MM | 1 | 18305A04BD6 | Shop at ECS Tuning | |||||
| 05 | Halter motornaher Katalysator | 1 | 18325A1D1E9 | Shop at ECS Tuning | ||||||
| 06 | Halter motornaher Katalysator | 1 | 18329845451 | Shop at ECS Tuning | ||||||
| 08 | Sechskantschraube mit Scheibe | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Gummilager | 2 | 18208570671 | Shop at ECS Tuning | ||||||
| 10 | Druckleitung Katalysator | 1 | 18329845454 | Shop at ECS Tuning | ||||||
| 11 | Druckleitung Ottopartikelfilter | 1 | 18329845455 | Shop at ECS Tuning | ||||||
| 12 | Formschlauch | 1 | 18329845456 | Shop at ECS Tuning | ||||||
| 13 | Schraube selbstschneidend | M8X33-10.9 ZNS3 | 2 | 31106783907 | $0.98 | Shop at ECS Tuning | ||||
Ergänzungen
- NoS = No Stock
