Getriebe Befestigung for BMW MINI R56 One (2008)

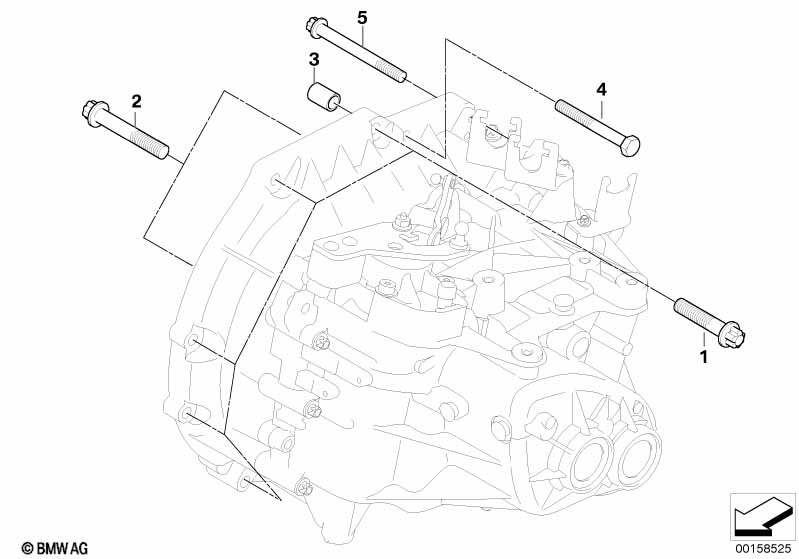

This Getriebe Befestigung technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ASA-Schraube | M10X40-8.8-ZNS3 | 4 | 23001434693 | $1.28 | Shop at ECS Tuning | ||||
| 02 | ASA-Schraube | M10X60-8.8-ZNS3 | 3 | 24007810609 | $1.21 | Shop at ECS Tuning | ||||
| 03 | Passhülse | 14X20 | 2 | 11117581549 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Sechskantschraube | M8X60 | 1 | 07119905848 | $3.82 | Shop at ECS Tuning | ||||
| 05 | ASA-Schraube | M8X85 | 2 | 07129904556 | $1.98 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One Getriebe Befestigung?
- This technical diagram illustrates the Getriebe Befestigung within the Getriebe mechanisch group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the ASA-Schraube (Part #23001434693).
- Which models use the hardware listed in this Getriebe Befestigung?
- The hardware and components featured in the Getriebe Befestigung are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the ASA-Schraube (23001434693) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getriebe Befestigung assembly?
- Each item in the Getriebe Befestigung corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the ASA-Schraube by locating its position on the schematic, which then links to the official BMW part number 23001434693 for the Getriebe mechanisch section.
