ZF 3HP12 Antriebskupplung A/B for BMW 1500-2000CS 1800 (1971)

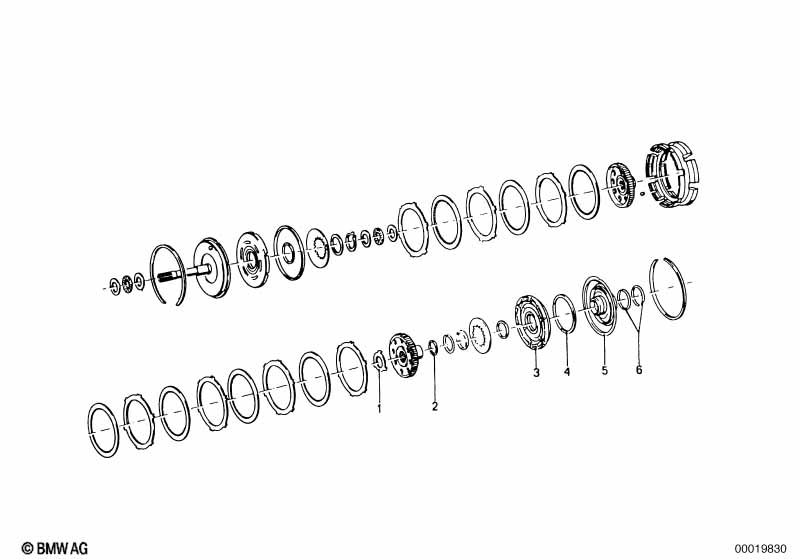

This ZF 3HP12 Antriebskupplung A/B technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Anlaufscheibe | 1 | 24231202611 | $5.80 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 4,500MM | X | 24231620134 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 4,400MM | X | 24231620135 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 4,300MM | X | 24231620136 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 4,200MM | X | 24231620137 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 4,100MM | X | 24231620138 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 4,000MM | X | 24231620139 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 3,900MM | X | 24231620140 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 3,800MM | X | 24231620141 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 3,700MM | X | 24231620142 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Distanzscheibe | 3,600MM | X | 24231620143 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Kolben | 1 | 24231203725 | Entfallen | Shop at ECS Tuning | |||||
| 03 | Kolben | 1 | 24231620145 | Entfallen | Shop at ECS Tuning | |||||
| 04 | Rechteckring | 80X89X2 | 1 | 24231203726 | Entfallen | Shop at ECS Tuning | ||||
| 04 | Rechteckring | 95X102X2 | 1 | 24231620146 | Entfallen | Shop at ECS Tuning | ||||
| 05 | Nabe | 1 | 24231202610 | Entfallen | Shop at ECS Tuning | |||||
| 05 | Nabe | 1 | 24231203728 | $154.01 | Entfallen | Shop at ECS Tuning | ||||
| 06 | O-Ring | 2 | 24231620148 | Entfallen | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
