ZF 3HP12 Gehäuseteile/Ölwanne for BMW 1500-2000CS 1800 (1971)

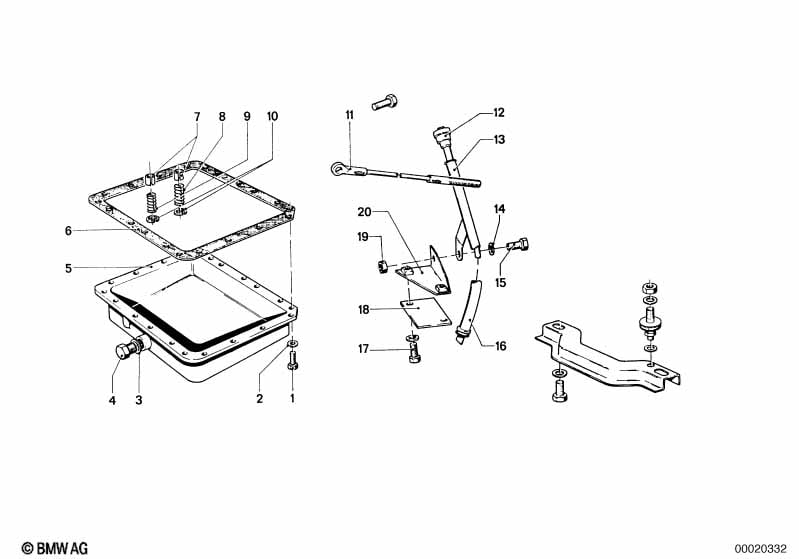

This ZF 3HP12 Gehäuseteile/Ölwanne technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema R-1-2-A-0-P | |||||||||
| 01 | Sechskantschraube | M6X12-8.8-ZNNIV | 20 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 03 | Dichtring | 1 | 24111215097 | $1.64 | Shop at ECS Tuning | |||||
| 04 | Verschlussschraube | AM18X1,5 | 1 | 07119919246 | $2.40 | Entfallen | Shop at ECS Tuning | |||
| 05 | Ölwanne | 1 | 24111606172 | $803.52 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Dichtung asbestfrei | 1 | 24111606171 | $17.79 | Shop at ECS Tuning | |||||
| 07 | Hülse | 4 | 24341606168 | $4.39 | Shop at ECS Tuning | |||||
| 09 | Druckfeder | D=0,8/L=26,6 | 2 | 24341606170 | $6.09 | Shop at ECS Tuning | ||||
| 10 | Sicherungsring | 10X1 | 2 | 24111218535 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Seil | 1 | 24711790110 | Entfallen | Shop at ECS Tuning | |||||
| 12 | Ölmessstab | 1 | 24111200867 | Entfallen | Shop at ECS Tuning | |||||
| 13 | Einfüllrohr | 1 | 24111602100 | Entfallen | Shop at ECS Tuning | |||||
| 15 | Sechskantschraube | M6X18 | 1 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 16 | O-Ring | 17X2,5 | 1 | 24111602108 | Entfallen | Shop at ECS Tuning | ||||
| 17 | Sechskantschraube | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
