GA8F22AW Getriebe Befestigung/Anbauteile for BMW 2 Series F45 Active Tourer 218d (2015)

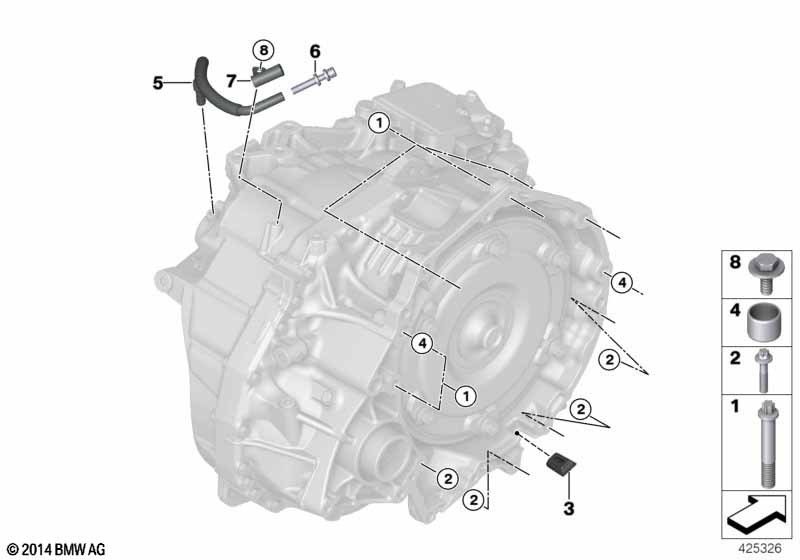

This GA8F22AW Getriebe Befestigung/Anbauteile technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torxschraube | M12X75 | 6 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Sechsrundschraube | BM8X40-8.8-ZNNI | 4 | 07119907836 | Shop at ECS Tuning | |||||
| 03 | Verschlusskappe | 1 | 23008612907 | Shop at ECS Tuning | ||||||
| 04 | Passhülse | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Entlüftungsleitung | 1 | 24148642588 | Shop at ECS Tuning | ||||||
| 06 | Entlüfter | 1 | 24148627924 | Shop at ECS Tuning | ||||||
| 07 | Halter Entlüftungsleitung | 1 | 24148642589 | Shop at ECS Tuning | ||||||
| 08 | Sechskantschraube | M8X17 | 1 | 24148627928 | Shop at ECS Tuning |
