Gelenkwelle-Mittellager-Kreuzgelenk for BMW 7 Series F02 730Li
This Gelenkwelle-Mittellager-Kreuzgelenk technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sechskantschraube | M12X1,5X71-ZNS3 | 3 | 10/2011 | 26117527475 | $2.08 | Shop at ECS Tuning | |||

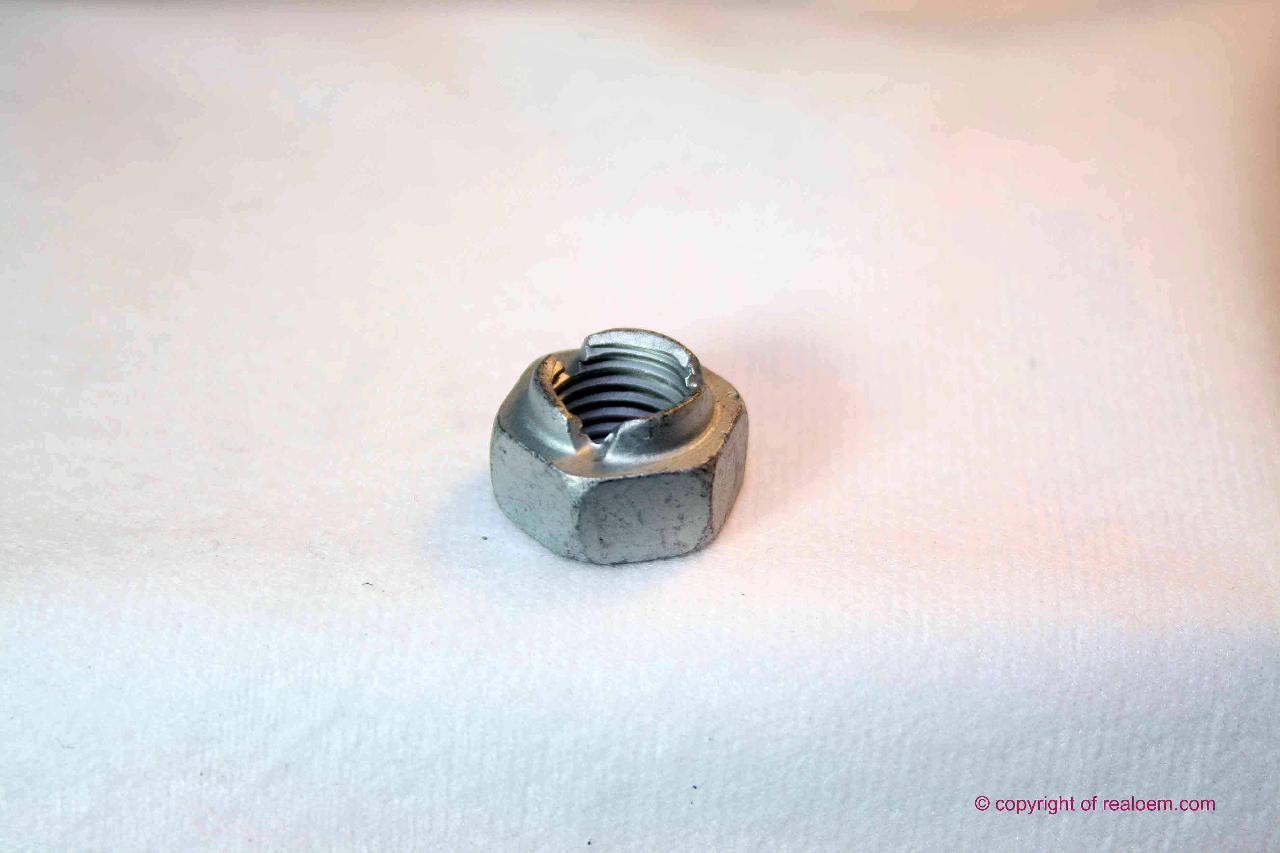

| 02 | Sechskantmutter selbstsichernd | M12X1,5-10-ZNS3 | 6 | 10/2011 | 26127536563 | $1.00 | Shop at ECS Tuning | |||
| 03 | Sechskantschraube | M12X1,5X71-ZNS3 | 3 | 10/2011 | 26117527475 | $2.08 | Shop at ECS Tuning | |||
| 04 | Zentrierhülse | 1 | 10/2011 | 26117526611 | $11.32 | Shop at ECS Tuning | ||||
| 05 | Gelenkscheibe | LK=105MM/12 | 1 | 10/2011 | 26117610061 | Shop at ECS Tuning | ||||
| 06 | Dämpfungsring | D=38/D=33 | 2 | 10/2011 | 26117581110 | Shop at ECS Tuning | ||||
| 07 | Faltenbalg Mittellager | 1 | 10/2011 | 11/2024 | 26117526628 | $8.45 | Shop at ECS Tuning | |||
| 07 | Faltenbalg Mittellager | 1 | 10/2011 | 26118881330 | Shop at ECS Tuning | |||||
| 08 | Mittellager Aluminium | 1 | 10/2011 | 26127564695 | Entfallen, +Pfand | Shop at ECS Tuning | ||||
| 08 | Mittellager Aluminium | 1 | 10/2011 | 26118858476 | Shop at ECS Tuning | |||||
| 09 | Rillenkugellager | D=55/D=35 | 1 | 10/2011 | 26121225002 | $30.45 | Shop at ECS Tuning | |||
| 10 | Sechskantschraube mit Scheibe | M8X24-8.8-ZNS3 | 2 | 10/2011 | 26127521853 | $1.18 | Shop at ECS Tuning | |||
| Achtung! Reparaturanleitung beachten Schrauben an Getriebe ersetzen! |
||||||||||
| 11 | Reparatursatz Einlegemutter blau | M39X1,5X20 | 1 | 10/2011 | 33127607158 | Shop at ECS Tuning | ||||
| 12 | Schmierfett Optitemp HT 1 LF | 50G | X | 10/2011 | 11/2024 | 83230417754 | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
