Frontplatte for BMW R45-R65LS..78-85 R65 (1982)

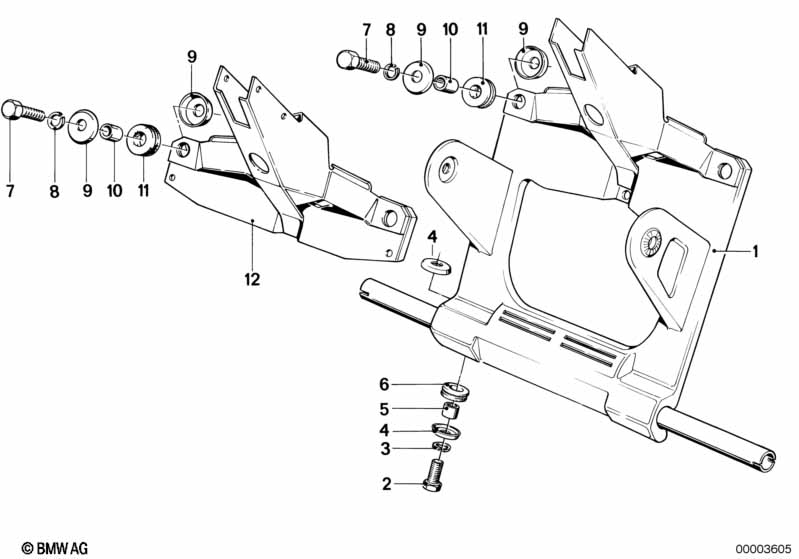

This Frontplatte technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frontplatte | 1 | 31421235573 | $121.55 | +Pfand | Shop at ECS Tuning | ||||
| 02 | Sechskantschraube | M6X20-8.8-ZNS | 2 | 07119913016 | $0.60 | Entfallen | Shop at ECS Tuning | |||
| 03 | Federscheibe | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Kappe | 4 | 31421236244 | $0.54 | Shop at ECS Tuning | |||||
| 05 | Buchse | 2 | 31421236241 | $0.92 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Gummitülle | 2 | 07147267586 | Shop at ECS Tuning | ||||||
| 07 | Sechskantschraube | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Federscheibe | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Kappe | 4 | 31421232243 | $1.96 | Shop at ECS Tuning | |||||
| 10 | Buchse | 2 | 31421236243 | $1.33 | Shop at ECS Tuning | |||||
| 11 | Gummitülle | 2 | 31421236242 | $2.80 | Shop at ECS Tuning |
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
- Entfallen = nicht mehr lieferbar.
