Stützlager/Federunterlage/Anbauteile for BMW 5 Series E39 540i (1998)

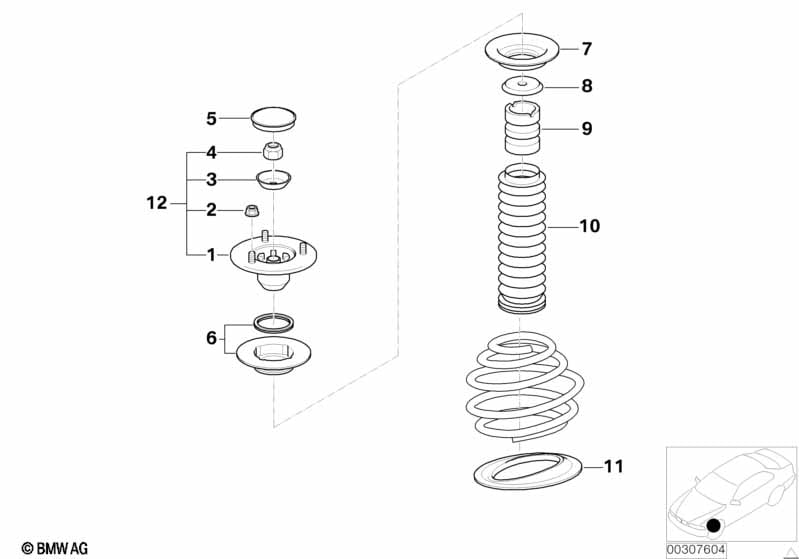

This Stützlager/Federunterlage/Anbauteile technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bundmutter selbstsichernd | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Teller | 2 | 31331096068 | $1.28 | Shop at ECS Tuning | |||||
| 04 | Sechskantmutter selbstsichernd | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Schutzkappe | 2 | 31331090616 | $2.91 | Shop at ECS Tuning | |||||
| 06 | Federteller oben mit Axialkäfiglager | 2 | 31331090612 | $11.70 | Shop at ECS Tuning | |||||
| 07 | Federunterlage oben | 2 | 31331091233 | $5.85 | Shop at ECS Tuning | |||||
| 08 | Stützscheibe | 2 | 31321139423 | $5.03 | Shop at ECS Tuning | |||||
| 09 | Zusatzdämpfer vorn | 2 | 31331091887 | $19.47 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Sportfahrw.+Tieferleg.+Niveaureg. |
S227A=Ja |
|||||||||
| 09 | Zusatzdämpfer vorn | 2 | 31331138814 | $18.02 | Shop at ECS Tuning | |||||
| 10 | Faltenbalg | 2 | 31331093344 | $20.56 | Shop at ECS Tuning | |||||
| 11 | Federunterlage unten | 2 | 10/1999 | 31331091864 | $3.73 | Shop at ECS Tuning | ||||
| 12 | Reparatursatz Stützlager | VALUE PARTS | 2 | 31352298912 | Shop at ECS Tuning | |||||
