Ölbehälter ASC+T/Einzelteile for BMW 7 Series E32 750iL (1990)

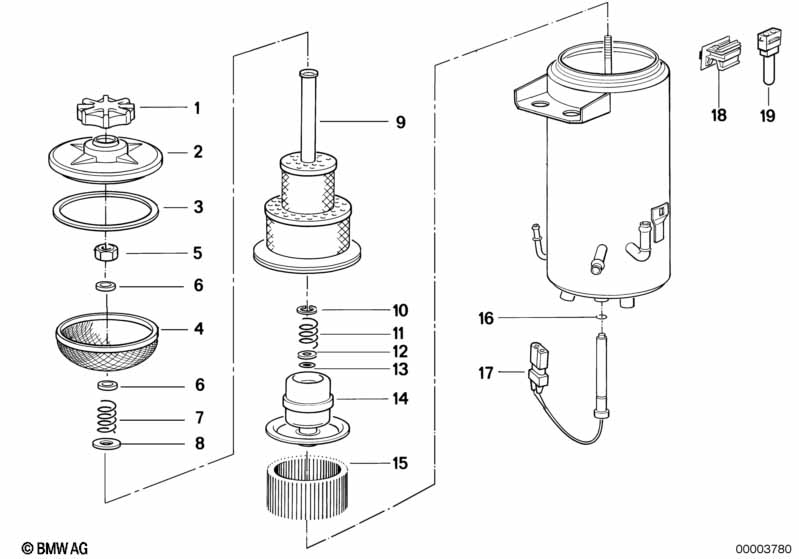

This Ölbehälter ASC+T/Einzelteile technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Einzelteile für | |||||||||
| 01 | Verschlusskappe | 1 | 32411128923 | $7.33 | Entfallen | Shop at ECS Tuning | ||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Deckel | 1 | 32411134842 | $19.00 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Dichtung | 1 | 32411134843 | $2.93 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 04 | Ölsieb | 1 | 32411134844 | $44.07 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 05 | Sechskantmutter | M6-8 CR | 1 | 07119922050 | $0.42 | Shop at ECS Tuning | ||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Unterlegscheibe | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 07 | Druckfeder | 1 | 32411138010 | $1.38 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Unterlegscheibe | 10-200HV-ZNNIV | 1 | 07119907114 | Shop at ECS Tuning | |||||
| 09 | Ölsieb | 1 | 32411137109 | Entfallen | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 10 | Sicherungsring | 1 | 32411138094 | Entfallen | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 11 | Druckfeder | 1 | 32411138095 | Entfallen | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 12 | Druckstück | 1 | 32411138096 | Entfallen | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 13 | O-Ring | 9X1,8 | 1 | 07119906353 | Entfallen | Shop at ECS Tuning | ||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 14 | Schwimmer | 1 | 32411138007 | $51.13 | Entfallen | Shop at ECS Tuning | ||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 15 | Filtereinsatz | 1 | 32411128167 | $14.57 | Entfallen | Shop at ECS Tuning | ||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 16 | Sprengring | 1 | 32411134850 | $0.53 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 17 | Kontakt | 1 | 32411134851 | $36.16 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 18 | Halter | 1 | 61131382162 | $1.28 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
| 19 | Kabelsatz | 1 | 61121382263 | $19.05 | Shop at ECS Tuning | |||||
| nur passend zu | ||||||||||
| -- | Ölbehälter | BELLINO | X | 32411137108 | Entfallen | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
