Hinterachsgetriebe for BMW 7 Series E32 750iL (1990)

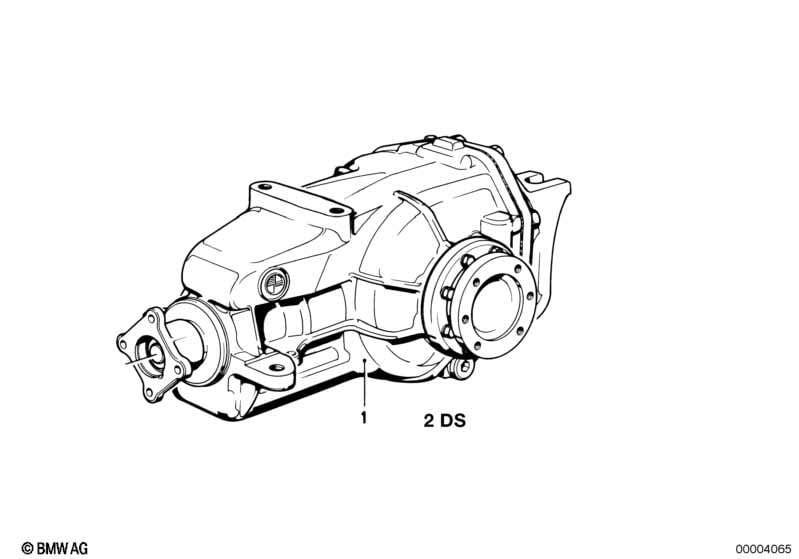

This Hinterachsgetriebe technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Tellerradsatz/Impulsgeberrad Einzelteile nicht mehr im Angebot |
|||||||||
| 01 | Austausch Hinterachsgetriebe | I=41:13=3,15 | 1 | 33101212462 | $1436.62 | Entfallen | Shop at ECS Tuning | |||
| 01 | Austausch Hinterachsgetriebe Sperre 25% | I=41:13=3,15 | 1 | 33101212465 | $2695.76 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 01 | Austausch Hinterachsgetriebe | I=40:11=3,64 | 1 | 11/1989 | 33101212454 | $1436.62 | Entfallen | Shop at ECS Tuning | ||
| 01 | Hinterachsgetriebe Sperre 25% | I=40:11=3,64 | 1 | 11/1989 | 33101213039 | $2695.76 | Entfallen | Shop at ECS Tuning | ||
| 02 | Dichtungssatz Hinterachsgetriebe | TYP 210 | 1 | 33101211941 | $121.36 | Entfallen | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
