Hinterachsgetriebeaufhängung for BMW 7 Series E32 750iL (1990)

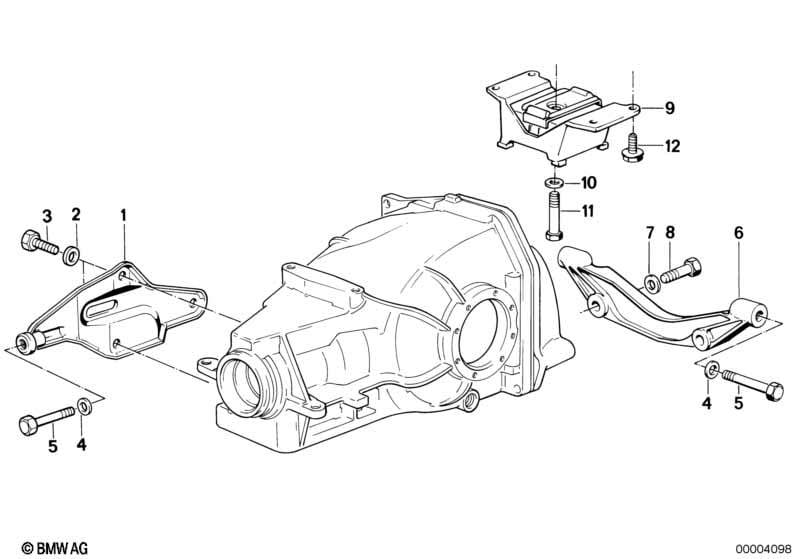

This Hinterachsgetriebeaufhängung technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stütze | 1 | 10/1988 | 33171136317 | $450.57 | Shop at ECS Tuning | ||||
| 02 | Unterlegscheibe | M14 | 3 | 33171132302 | $0.26 | Shop at ECS Tuning | ||||
| 03 | Sechskantschraube | M14X1.5X25 | 3 | 07119917701 | $1.53 | Entfallen | Shop at ECS Tuning | |||
| 04 | Unterlegscheibe | A12.5X30X3MM | 3 | 33331120662 | $0.35 | Entfallen | Shop at ECS Tuning | |||
| 05 | Sechskantschraube | M12X1.5X90 | 3 | 07119914667 | $1.78 | Shop at ECS Tuning | ||||
| 06 | Halter | 1 | 33171131164 | $72.19 | Shop at ECS Tuning | |||||
| 07 | Unterlegscheibe | A12.5X30X3MM | 2 | 33331120662 | $0.35 | Entfallen | Shop at ECS Tuning | |||
| 08 | Sechskantschraube | M12X1,5X50 10.9 | 2 | 07119914631 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Gummilager | 1 | 33311132251 | $108.77 | Shop at ECS Tuning | |||||
| 10 | Unterlegscheibe | 13X30X4MM | 1 | 33171125439 | $0.73 | Shop at ECS Tuning | ||||
| 11 | Sechskantschraube | M12X1,5X100 | 1 | 07119914678 | $2.35 | Shop at ECS Tuning | ||||
| 12 | Sechskantschraube | M10X20 | 4 | 33331132413 | $1.11 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
