Hinterachswelle/Radlagerung for BMW 7 Series E32 750iL (1990)

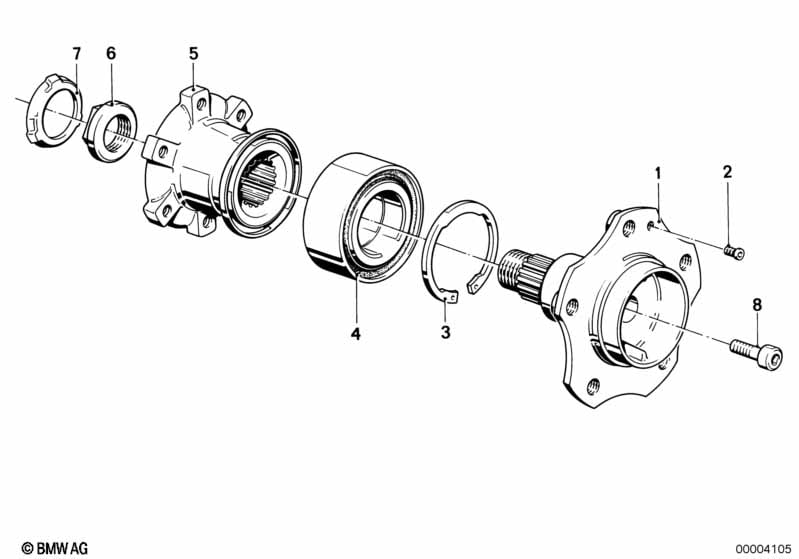

This Hinterachswelle/Radlagerung technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 01 | Hinterachswelle | 2 | 33411134877 | $211.02 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Innensechskantschraube | M8X12 | 2 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 03 | Sicherungsring | 80X2,5 | 2 | 07119934749 | $0.96 | Shop at ECS Tuning | ||||
| 04 | Kugellager | 42X80X42 | 2 | 33411133123 | $122.76 | Shop at ECS Tuning | ||||
| 05 | Mitnehmerflansch | 2 | 33411131063 | $93.58 | Shop at ECS Tuning | |||||
| 06 | Bundmutter | M27X1,5 | 2 | 33411123428 | $7.76 | Shop at ECS Tuning | ||||
| 07 | Sicherungsblech | 2 | 33411123973 | $0.88 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
