Hinterachsträger for BMW 7 Series E32 750iL (1990)

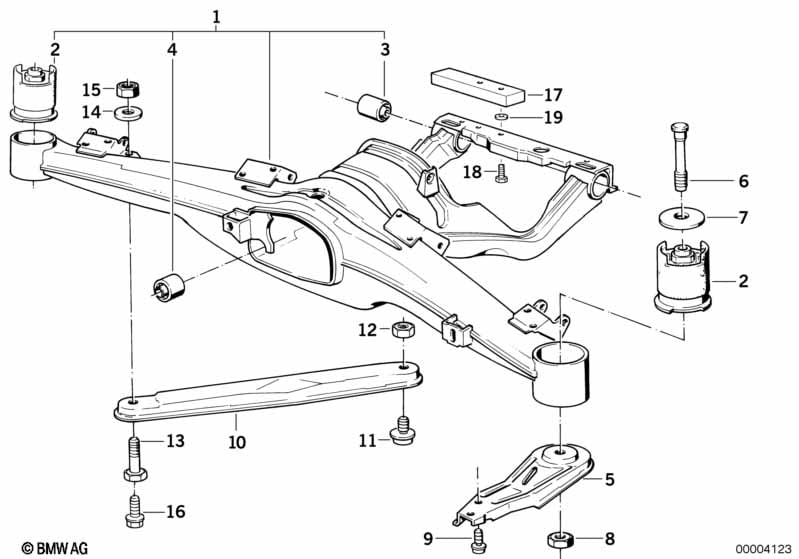

This Hinterachsträger technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hinterachsträger | 1 | 33311090382 | $1231.78 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Gummilager | 2 | 33311128670 | $54.46 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Gummilager | 2 | 33171131903 | $33.38 | Shop at ECS Tuning | |||||
| 04 | Gummilager | 1 | 10/1988 | 33171140308 | $26.77 | Entfallen | Shop at ECS Tuning | |||
| 05 | Schubstrebe links | 1 | 33321130351 | $33.91 | Shop at ECS Tuning | |||||
| 05 | Schubstrebe rechts | 1 | 33321130352 | $33.91 | Shop at ECS Tuning | |||||

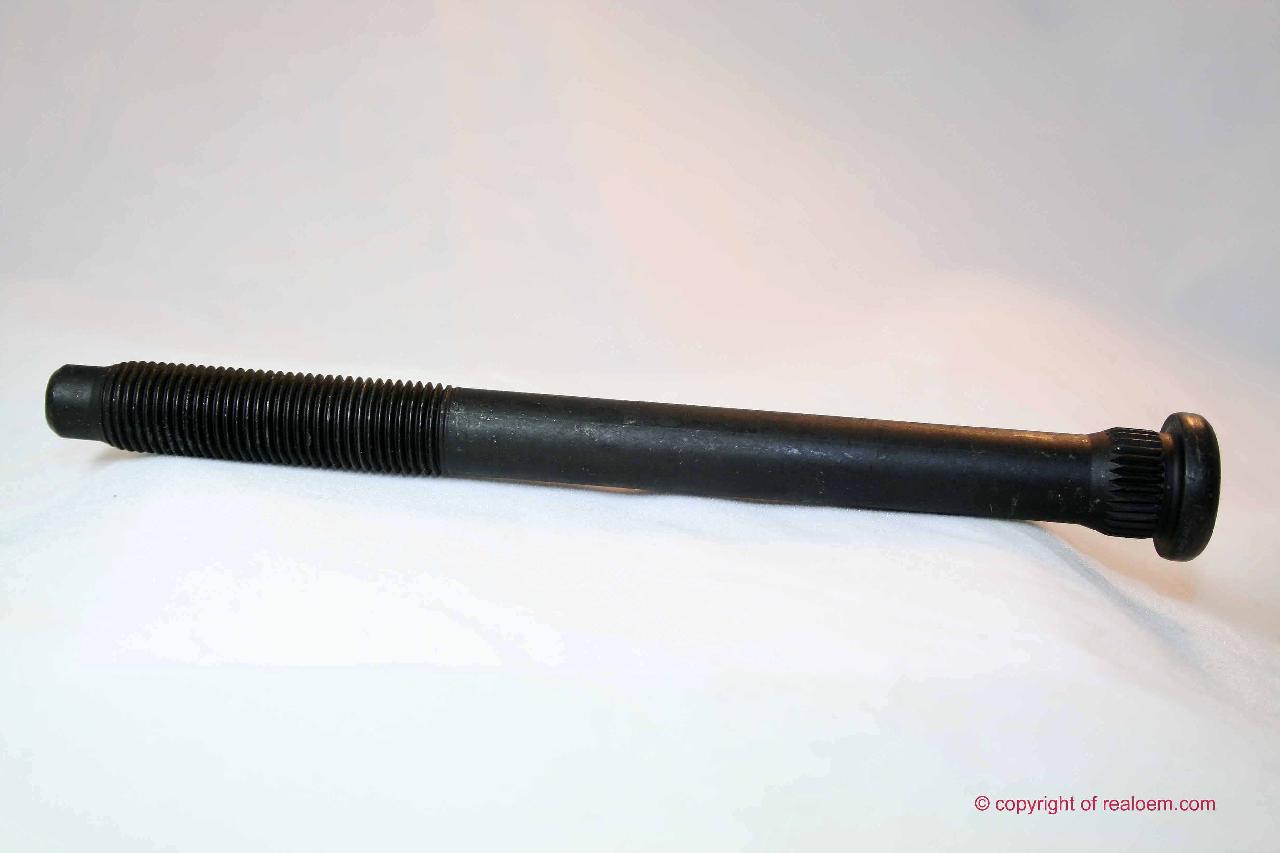

| 06 | Rändelbolzen | M14X170,6 | 2 | 51718181460 | $6.63 | Shop at ECS Tuning | ||||
| 08 | Bundmutter | M14X1,5 | 2 | 33331126136 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Sechskantschraube mit Scheibe | M8X20-ZNS3 | 1 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Strebe | 1 | 33311134154 | $33.91 | Shop at ECS Tuning | |||||
| 11 | Sechskantschraube | M12X1,5X25 | 1 | 33311133464 | $1.37 | Shop at ECS Tuning | ||||
| 12 | Bundmutter | M12X1,5 | 1 | 33311133463 | $1.26 | Shop at ECS Tuning | ||||
| 13 | Sechskantschraube | M14X1,5X100 | 1 | 07119914849 | $3.05 | Shop at ECS Tuning | ||||
| 14 | Unterlegscheibe | A15 ZNS3 | 1 | 07119905829 | $0.74 | Shop at ECS Tuning | ||||
| 15 | Sechskantmutter selbstsichernd | M14X1,5 | 1 | 07129922745 | $1.04 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
