Stabilisator hinten for BMW 7 Series E32 750iL (1990)

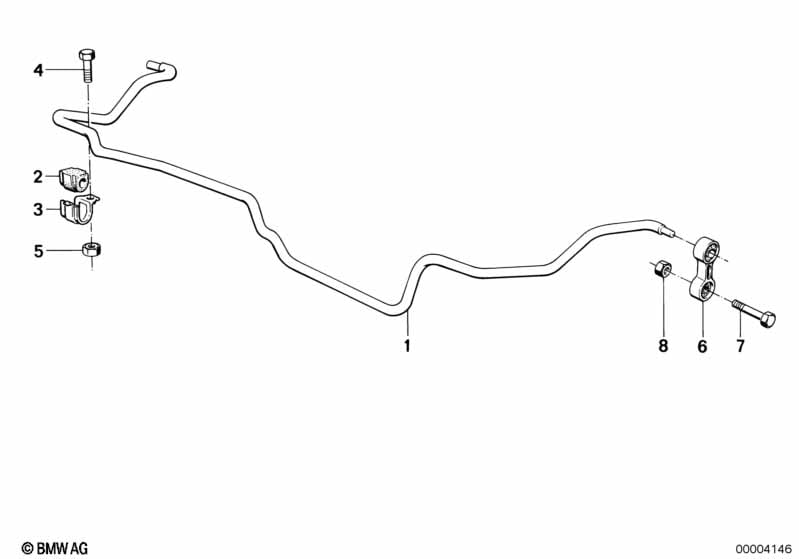

This Stabilisator hinten technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilisator hinten | D=15MM | 1 | 33551131649 | $158.38 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Niveauregulierung und Klimaanlage und M Sportfahrwerk |
S220A=Ja S530A=Ja S704A=Ja |
|||||||||
| 01 | Stabilisator hinten | D=17MM | 1 | 33552226377 | $191.10 | Entfallen | Shop at ECS Tuning | |||
| 02 | Gummilager Stabilisator | D=15MM | 2 | 33551131155 | $8.79 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Niveauregulierung und Klimaanlage und M Sportfahrwerk |
S220A=Ja S530A=Ja S704A=Ja |
|||||||||
| 02 | Gummilager Stabilisator | D=17MM | 2 | 33552226315 | $8.79 | Shop at ECS Tuning | ||||
| 03 | Haltebügel Stabilisator | 2 | 33506779734 | $3.04 | Shop at ECS Tuning | |||||
| 04 | Sechskantschraube | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Sechskantmutter selbstsichernd | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Pendelstütze | 2 | 33551131131 | Shop at ECS Tuning | ||||||
| Für die Reparatur notwendig | ||||||||||
| -- | Sechskantschraube | M8X43-8.8-ZNS3 | 2 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| -- | Sechskantmutter selbstsichernd | M8 | 2 | 07129964655 | $0.25 | Entfallen | Shop at ECS Tuning | |||
| 07 | Sechskantschraube | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Sechskantmutter selbstsichernd | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
