Niveauregulierung/Regelventil/Anbauteile for BMW 7 Series E32 750iL (1990)

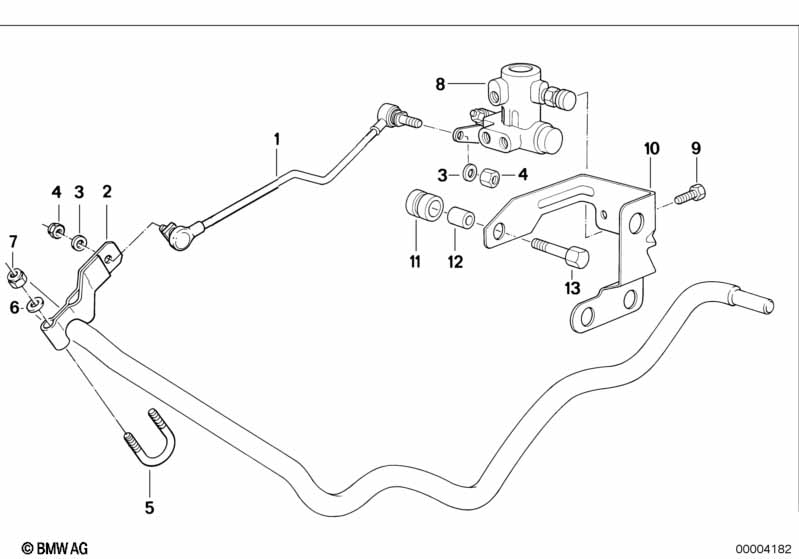

This Niveauregulierung/Regelventil/Anbauteile technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Druckstange | 1 | 09/1987 | 10/1991 | 37101133890 | $15.82 | Shop at ECS Tuning | |||
| 02 | Hebel | 1 | 09/1987 | 37121132470 | $27.20 | Shop at ECS Tuning | ||||
| 03 | Unterlegscheibe | A6,4-ZNNIV SI | 2 | 09/1987 | 07119904202 | Shop at ECS Tuning | ||||
| 04 | Sechskantmutter selbstsichernd | M6-10 ZN | 2 | 09/1987 | 04/1994 | 07129922705 | $0.27 | Entfallen | Shop at ECS Tuning | |
| 04 | Sechskantmutter selbstsichernd | M6 ZNNIV SI | 2 | 09/1987 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 05 | Bügel | 1 | 09/1987 | 37121123877 | $4.42 | Shop at ECS Tuning | ||||
| 06 | Unterlegscheibe | A6,4-ZNNIV SI | 2 | 09/1987 | 07119904202 | Shop at ECS Tuning | ||||
| 07 | Sechskantmutter selbstsichernd | M6-10 ZN | 2 | 09/1987 | 04/1994 | 07129922705 | $0.27 | Entfallen | Shop at ECS Tuning | |
| 07 | Sechskantmutter selbstsichernd | M6 ZNNIV SI | 2 | 09/1987 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 08 | Regelventil | 1 | 09/1987 | 37121138407 | $329.73 | Entfallen, +Pfand | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Druckstange | 1 | 09/1987 | 37121138408 | $19.93 | Shop at ECS Tuning | ||||
| 09 | Sechskantschraube | M6X16-8.8-ZNS3 | 2 | 09/1987 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 10 | Halter Regelventil | 1 | 09/1987 | 37121132469 | $5.23 | Entfallen | Shop at ECS Tuning | |||
| 11 | Gummitülle | 24 X 14 X 15 MM | 3 | 09/1987 | 37121131130 | $0.77 | Shop at ECS Tuning | |||
| 12 | Distanzbuchse | 14 X 2,8 X 12MM | 3 | 09/1987 | 37121131780 | $0.63 | Shop at ECS Tuning | |||
| 13 | Sechskantschraube | M8X28-ZN | 3 | 09/1987 | 07119913659 | $0.47 | Entfallen | Shop at ECS Tuning | ||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
