Federbein hinten EDC/Niveauregulierung for BMW 7 Series E32 750iL (1990)

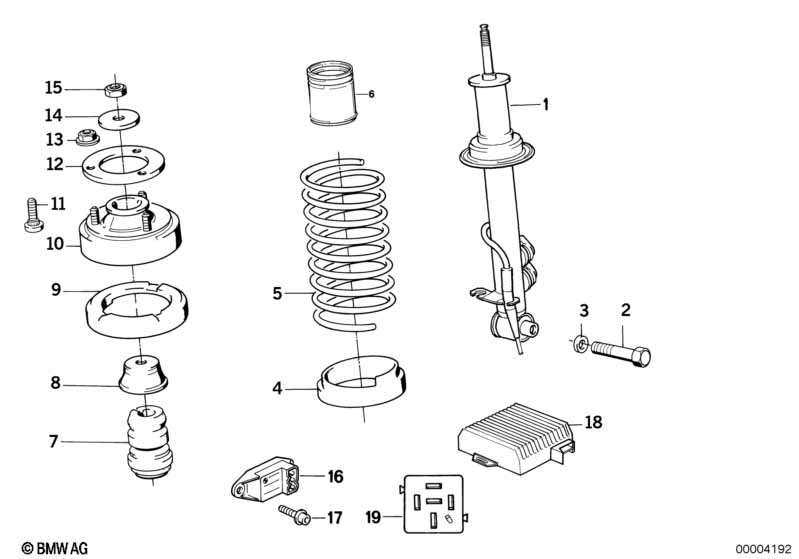

This Federbein hinten EDC/Niveauregulierung technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Federbein hinten links | 1 | 05/1990 | 37121138783 | $1380.27 | Entfallen | Shop at ECS Tuning | |||
| 01 | Federbein hinten rechts | 1 | 05/1990 | 37121138784 | $1380.27 | Entfallen | Shop at ECS Tuning | |||
| 02 | Sechskantschraube | M14X1,5X85 | 2 | 05/1990 | 07119914829 | $5.82 | Shop at ECS Tuning | |||
| 03 | Unterlegscheibe | 2 | 05/1990 | 33521125260 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Federunterlage unten | 2 | 05/1990 | 33521131523 | $7.48 | Shop at ECS Tuning | ||||
| 05 | Schraubenfeder | 2 | 05/1990 | 09/1991 | 33531134532 | $159.96 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Anhängerkupplung |
=Ja |
|||||||||
| 05 | Schraubenfeder | 2 | 05/1990 | 09/1991 | 33531134552 | $159.96 | Shop at ECS Tuning | |||
| 06 | Faltenbalg | 2 | 05/1990 | 31321125878 | $12.62 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan und Anhängerkupplung |
L807A=Ja =Ja |
|||||||||
| 06 | Schutzrohr | 2 | 05/1990 | 31331134314 | $2.25 | Shop at ECS Tuning | ||||
| 07 | Zusatzdämpfer hinten | 2 | 05/1990 | 33531138577 | $20.55 | Shop at ECS Tuning | ||||
| 08 | Stützscheibe | 2 | 05/1990 | 37121114729 | $3.07 | Shop at ECS Tuning | ||||
| 09 | Federunterlage oben | 2 | 05/1990 | 33531133048 | $9.40 | Shop at ECS Tuning | ||||
| 10 | Stützlager | 2 | 05/1990 | 37121129717 | $47.70 | Shop at ECS Tuning | ||||

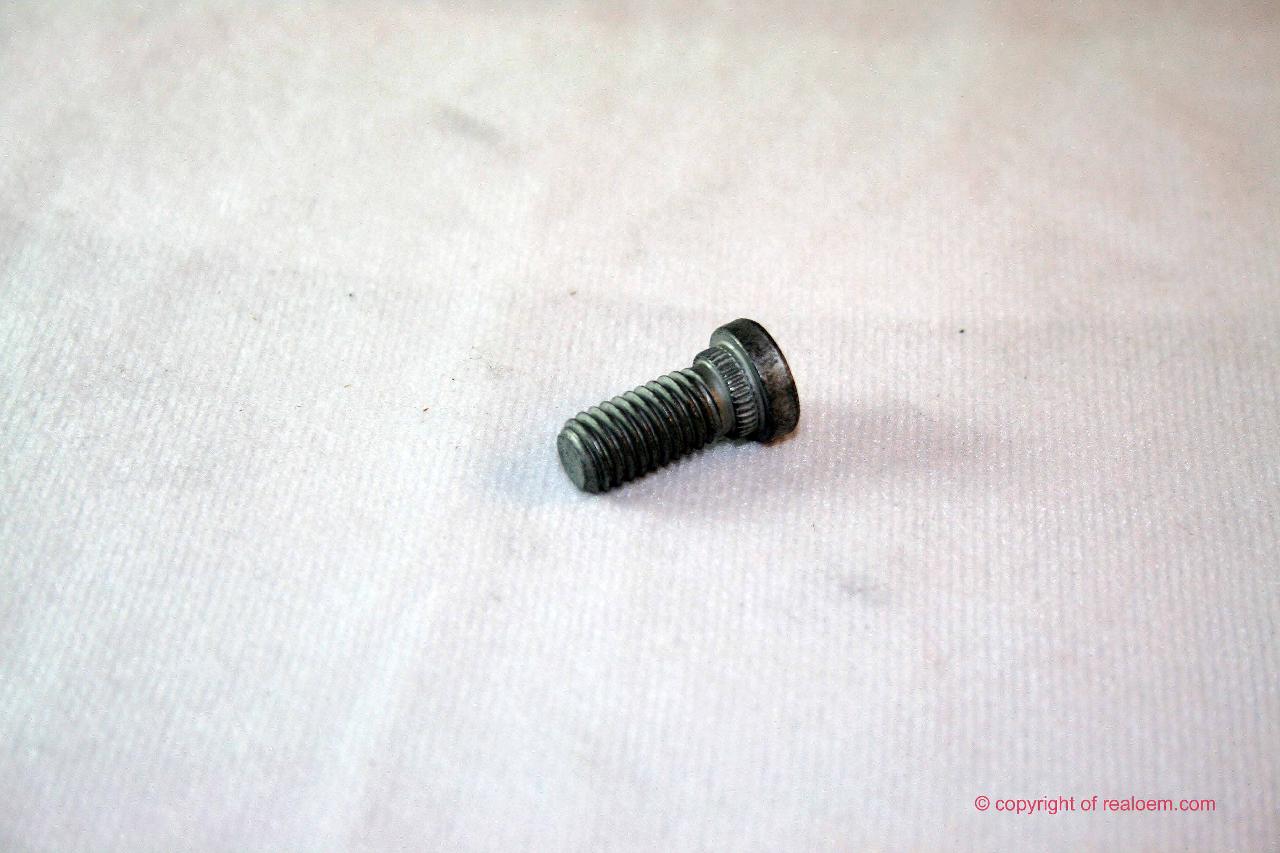

| 11 | Bolzen | M8X18 ZNS3 | 6 | 05/1990 | 31336765744 | $1.17 | Shop at ECS Tuning | |||
| 12 | Dichtscheibe | 2 | 05/1990 | 33521129567 | $0.66 | Shop at ECS Tuning | ||||
| 13 | Bundmutter selbstsichernd | M8-8-ZNS3 | 6 | 05/1990 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 13 | Bundmutter selbstsichernd | M8-10 ZNS3 | 6 | 05/1990 | 07119905374 | Shop at ECS Tuning | ||||
| 14 | Teller | 2 | 05/1990 | 37121130122 | $4.41 | Shop at ECS Tuning | ||||
| 15 | Sechskantmutter selbstsichernd | M10X1 | 2 | 05/1990 | 07129922436 | $0.54 | Shop at ECS Tuning | |||
| 16 | Beschleunigungssensor | 3 | 05/1990 | 09/1991 | 37141179832 | $297.38 | Shop at ECS Tuning | |||
| 17 | Zylinderschraube mit Scheibe | M6X16-Z1-8.8 | 6 | 05/1990 | 07119902316 | $2.84 | Shop at ECS Tuning | |||
| 18 | Steuergerät | 1 | 05/1990 | 09/1991 | 37151138760 | $931.86 | Entfallen | Shop at ECS Tuning | ||
| 19 | Relais | 1 | 05/1990 | 37151180408 | $102.08 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
