Federbein hinten Niveauregulierung for BMW 7 Series E32 750iL (1990)

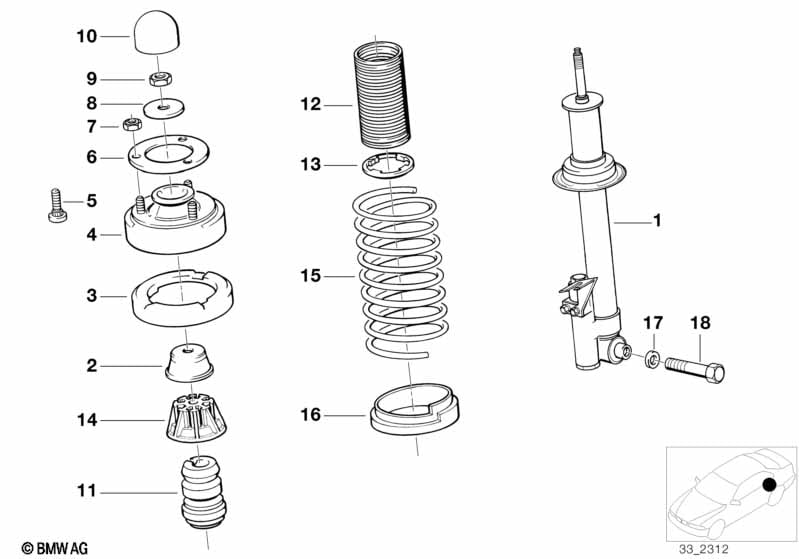

This Federbein hinten Niveauregulierung technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Federbein hinten links | 1 | 09/1991 | 37121134283 | $654.00 | Shop at ECS Tuning | ||||
| 01 | Federbein hinten rechts | 1 | 09/1991 | 37121134284 | $654.00 | Shop at ECS Tuning | ||||
| Sportliche Fahrwerksabstimmung | ||||||||||
| 01 | Federbein hinten links | 1 | 09/1991 | 37121133725 | $630.54 | Entfallen | Shop at ECS Tuning | |||
| 01 | Federbein hinten rechts | 1 | 09/1991 | 37121133726 | $630.54 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Osteuropa |
L816A=Ja |
|||||||||
| 01 | Federbein hinten links | 1 | 37121138929 | $630.54 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Federbein hinten rechts | 1 | 37121138930 | $630.54 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Stützscheibe | 2 | 37121114729 | $3.07 | Shop at ECS Tuning | |||||
| 03 | Federunterlage oben | 2 | 33531133048 | $9.40 | Shop at ECS Tuning | |||||
| 04 | Stützlager | 2 | 37121129717 | $47.70 | Shop at ECS Tuning | |||||
| 05 | Bolzen | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 06 | Dichtscheibe | 2 | 33521129567 | $0.66 | Shop at ECS Tuning | |||||
| 07 | Bundmutter selbstsichernd | M8-8-ZNS3 | 6 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Bundmutter selbstsichernd | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 08 | Teller | 2 | 37121130122 | $4.41 | Shop at ECS Tuning | |||||
| 09 | Sechskantmutter selbstsichernd | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 10 | Kappe | 2 | 33521132854 | $2.53 | Shop at ECS Tuning | |||||
| 11 | Zusatzdämpfer hinten | 2 | 33531138577 | $20.55 | Shop at ECS Tuning | |||||
| 12 | Faltenbalg | 2 | 31321125878 | $12.62 | Shop at ECS Tuning | |||||
| 13 | Haltering | 2 | 37121134899 | $2.97 | Shop at ECS Tuning | |||||
| 15 | Schraubenfeder | 2 | 09/1988 | 09/1991 | 33531134365 | $159.96 | Shop at ECS Tuning | |||
| Sportliche Fahrwerksabstimmung | ||||||||||
| 15 | Schraubenfeder | 2 | 09/1991 | 33531133095 | $117.18 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Anhängerkupplung |
=Ja |
|||||||||
| 15 | Schraubenfeder | 2 | 09/1988 | 09/1991 | 33531135896 | $124.99 | Entfallen | Shop at ECS Tuning | ||
| Für Fahrzeuge mit Anhängerkupplung Sportliche Fahrwerksabstimmung |
=Ja |
|||||||||
| 15 | Schraubenfeder | 2 | 10/1987 | 09/1991 | 33531134365 | $159.96 | Shop at ECS Tuning | |||
| 16 | Federunterlage unten | 2 | 33521131523 | $7.48 | Shop at ECS Tuning | |||||
| 17 | Unterlegscheibe | 2 | 33521125260 | $1.65 | Shop at ECS Tuning | |||||
| 18 | Sechskantschraube | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Federbein hinten Niveauregulierung?
- This technical diagram illustrates the Federbein hinten Niveauregulierung within the Hinterachse group for the 7 Series E32 750iL produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Federbein hinten links (Part #37121134283).
- Which models use the hardware listed in this Federbein hinten Niveauregulierung?
- The hardware and components featured in the Federbein hinten Niveauregulierung are specific to the 7 Series E32 750iL produced during 1990. These technical specifications ensure that parts like the Federbein hinten links (37121134283) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Federbein hinten Niveauregulierung assembly?
- Each item in the Federbein hinten Niveauregulierung corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the Federbein hinten links by locating its position on the schematic, which then links to the official BMW part number 37121134283 for the Hinterachse section.
