Federbein hinten Niveau/M Sportfahrwerk for BMW 7 Series E32 750iL (1990)

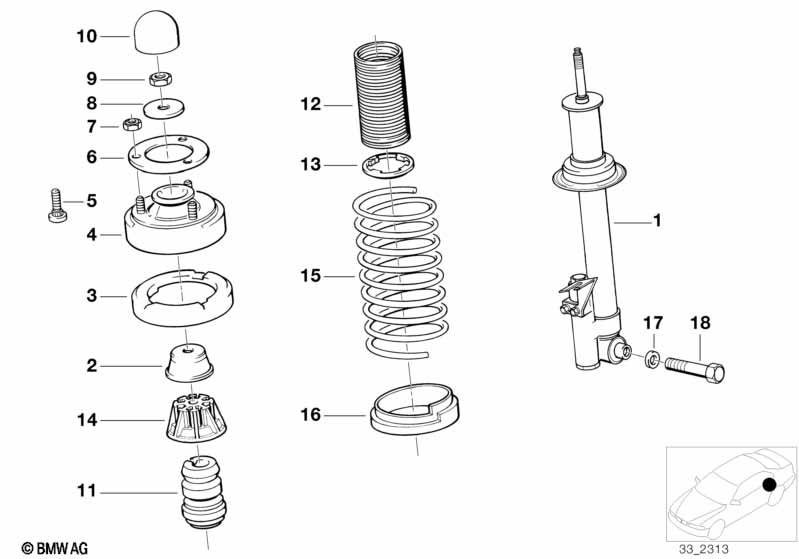

This Federbein hinten Niveau/M Sportfahrwerk technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Federbein hinten links | 1 | 37122226393 | $704.93 | Shop at ECS Tuning | |||||
| 01 | Federbein hinten rechts | 1 | 37122226394 | $704.93 | Shop at ECS Tuning | |||||
| 02 | Stützscheibe | 2 | 37121114729 | $3.07 | Shop at ECS Tuning | |||||
| 03 | Federunterlage oben | 2 | 33531133670 | $7.82 | Shop at ECS Tuning | |||||
| 04 | Stützlager | 12,2X44,0X64,5 | 2 | 37121129867 | $47.70 | Shop at ECS Tuning | ||||
| 05 | Bolzen | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 06 | Dichtscheibe | 2 | 33521129567 | $0.66 | Shop at ECS Tuning | |||||
| 07 | Bundmutter selbstsichernd | M8-8-ZNS3 | 6 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Bundmutter selbstsichernd | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 08 | Teller | 2 | 37121130122 | $4.41 | Shop at ECS Tuning | |||||
| 09 | Sechskantmutter selbstsichernd | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 11 | Zusatzdämpfer hinten | 2 | 33532226351 | $20.55 | Shop at ECS Tuning | |||||
| 12 | Faltenbalg | 2 | 37121129716 | $6.90 | Shop at ECS Tuning | |||||
| 13 | Haltering | 2 | 37121134899 | $2.97 | Shop at ECS Tuning | |||||
| 14 | Abstandsring | 2 | 33532226352 | $4.18 | Shop at ECS Tuning | |||||
| 15 | Schraubenfeder | 2 | 33532226288 | $148.75 | Shop at ECS Tuning | |||||
| 16 | Federunterlage unten | 2 | 33531133671 | $8.38 | Shop at ECS Tuning | |||||
| 17 | Unterlegscheibe | 2 | 33521125260 | $1.65 | Shop at ECS Tuning | |||||
| 18 | Sechskantschraube | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning |
