Antriebsflansch-Lagerung/Dichtring for BMW 7 Series E32 750iL (1990)

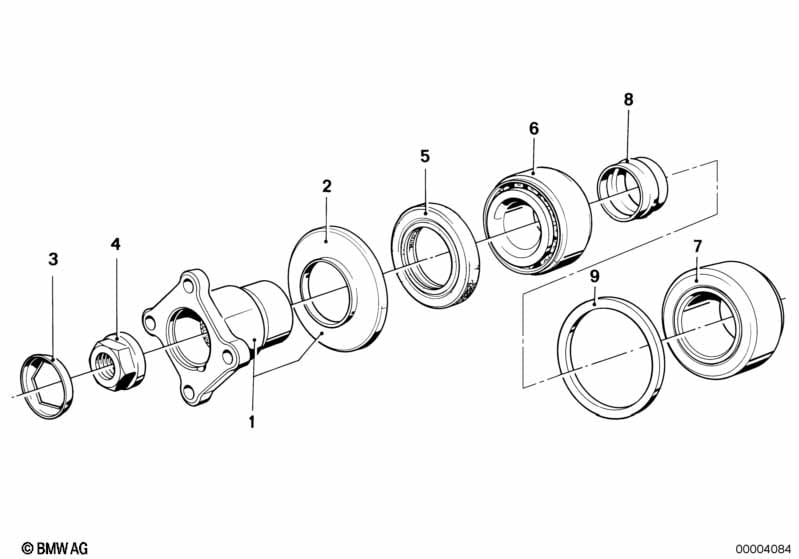

This Antriebsflansch-Lagerung/Dichtring technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Achtung! Antriebsflansch und Mutter dürfen nicht erneuert werden. |
|||||||||
| 02 | Staubschutzteller | 1 | 33137600693 | Shop at ECS Tuning | ||||||
| 03 | Sicherungsblech | 1 | 33121205138 | $1.33 | Shop at ECS Tuning | |||||
| 05 | Wellendichtring | 50X80X9 | 1 | 33121213949 | $40.15 | Shop at ECS Tuning | ||||
| 06 | Kegelrollenlager | 1 | 33121206294 | Shop at ECS Tuning | ||||||
| 07 | Kegelrollenlager | 44,4X88,9X30,1 | 1 | 33121204407 | $83.67 | Shop at ECS Tuning | ||||
| 08 | Spannhülse | 1 | 33121204657 | $7.93 | Shop at ECS Tuning | |||||
| 09 | Satz Distanzscheiben | 3,205MM-3,475MM | X | 33129065173 | $35.00 | Shop at ECS Tuning | ||||
| 09 | Satz Distanzscheiben | 3,505MM-3,685MM | X | 33129065174 | $36.42 | Shop at ECS Tuning | ||||
| 09 | Satz Distanzscheiben | 3,695MM-3,785MM | X | 33129065175 | $36.42 | Shop at ECS Tuning | ||||
| 09 | Satz Distanzscheiben | 3,795MM-3,955MM | X | 33129065176 | $36.42 | Shop at ECS Tuning | ||||
| 09 | Satz Distanzscheiben | 3,985MM-4,285MM | X | 33129065177 | $36.42 | Entfallen | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
