Abtriebswelle for BMW 7 Series E32 750iL (1990)

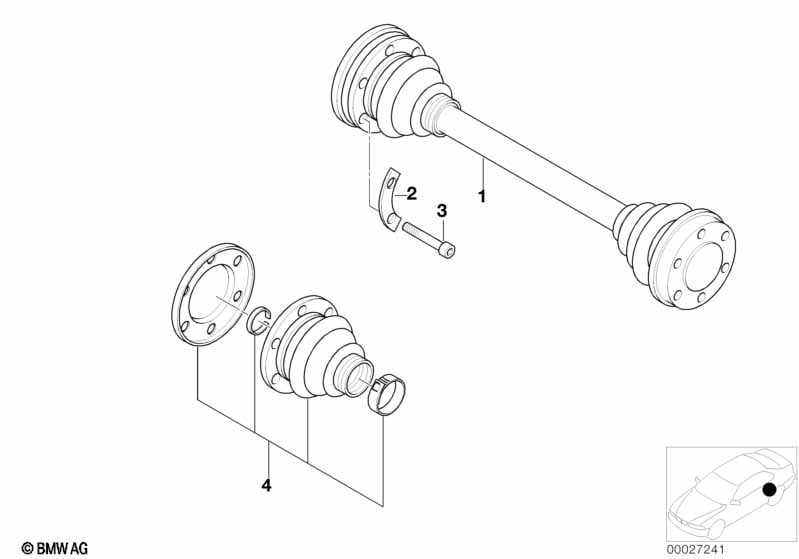

This Abtriebswelle technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN Abtriebswelle | D=111MM/D=29MM | 2 | 33211225859 | $558.25 | Shop at ECS Tuning | ||||
| 02 | Unterlegblech | D=10,5MM/ZNS3 | 12 | 33207572719 | $2.25 | Shop at ECS Tuning | ||||
| 03 | Schraube Aussentorx | M10X50 | 12 | 33211227279 | $1.79 | Shop at ECS Tuning | ||||
| 04 | Reparatursatz Faltenbalg | 4 | 33219067906 | $59.90 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Abtriebswelle?
- This technical diagram illustrates the Abtriebswelle within the Hinterachse group for the 7 Series E32 750iL produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN Abtriebswelle (Part #33211225859).
- Which models use the hardware listed in this Abtriebswelle?
- The hardware and components featured in the Abtriebswelle are specific to the 7 Series E32 750iL produced during 1990. These technical specifications ensure that parts like the RP REMAN Abtriebswelle (33211225859) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Abtriebswelle assembly?
- Each item in the Abtriebswelle corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the RP REMAN Abtriebswelle by locating its position on the schematic, which then links to the official BMW part number 33211225859 for the Hinterachse section.
