Sensor Leuchtweitenregulierung for BMW MINI F66 JCW

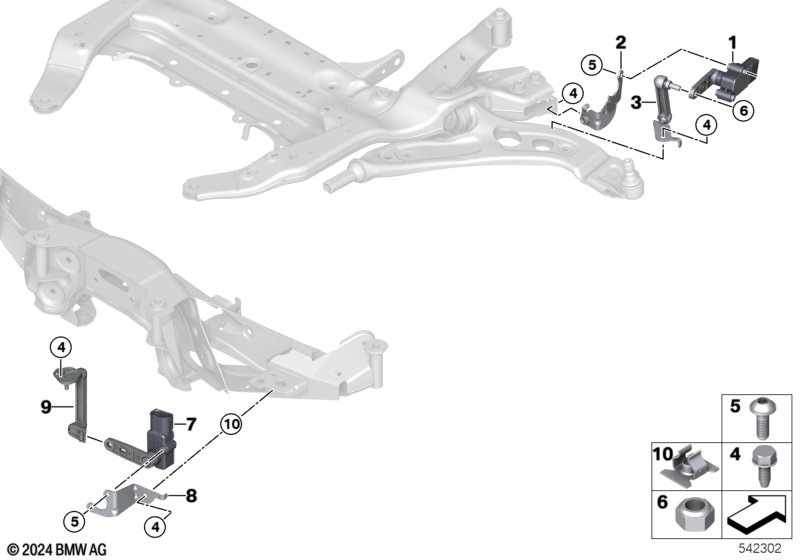

This Sensor Leuchtweitenregulierung technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit LED-Scheinwerfer m. erweiterten Umfängen |
S5A4A=Ja |
|||||||||
| 01 | Höhenstandssensor | 1 | 37146895466 | Shop at ECS Tuning | ||||||
| 02 | Halter Höhenstandssensor vorne | 1 | 37148846018 | NoS | Shop at ECS Tuning | |||||
| 03 | Regelstange vorn rechts | 1 | 37148874026 | Shop at ECS Tuning | ||||||
| 04 | Sechskantschraube gewindefurchend | M6X16 | 4 | 37146869771 | Shop at ECS Tuning | |||||
| 05 | Linsenkopfschraube | 4 | 07141543905 | Shop at ECS Tuning | ||||||
| 06 | Sechskantmutter selbstsichernd | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Höhenstandssensor | 1 | 37146895466 | Shop at ECS Tuning | ||||||
| 08 | Halter Höhenstandssensor hinten | 1 | 37146853714 | Shop at ECS Tuning | ||||||
| 09 | Regelstange hinten | 1 | 37146892287 | Shop at ECS Tuning | ||||||
| 10 | Prestol Käfig | M6 ZNS3 | 1 | 37146850307 | Shop at ECS Tuning | |||||
Ergänzungen
- NoS = No Stock
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F66 JCW Sensor Leuchtweitenregulierung?
- This technical diagram illustrates the Sensor Leuchtweitenregulierung within the Hinterachse group for the MINI F66 JCW. It provides a detailed exploded view of the components, identifying key parts such as the Höhenstandssensor (Part #37146895466).
- Which models use the hardware listed in this Sensor Leuchtweitenregulierung?
- The hardware and components featured in the Sensor Leuchtweitenregulierung are specific to the MINI F66 JCW. These technical specifications ensure that parts like the Höhenstandssensor (37146895466) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sensor Leuchtweitenregulierung assembly?
- Each item in the Sensor Leuchtweitenregulierung corresponds to the numbered list below the illustration. For the MINI F66 JCW, you can identify the Höhenstandssensor by locating its position on the schematic, which then links to the official BMW part number 37146895466 for the Hinterachse section.
