Vorderradbremse-Bremsbelag-Fühler for BMW 7 Series E23 728i (1986)

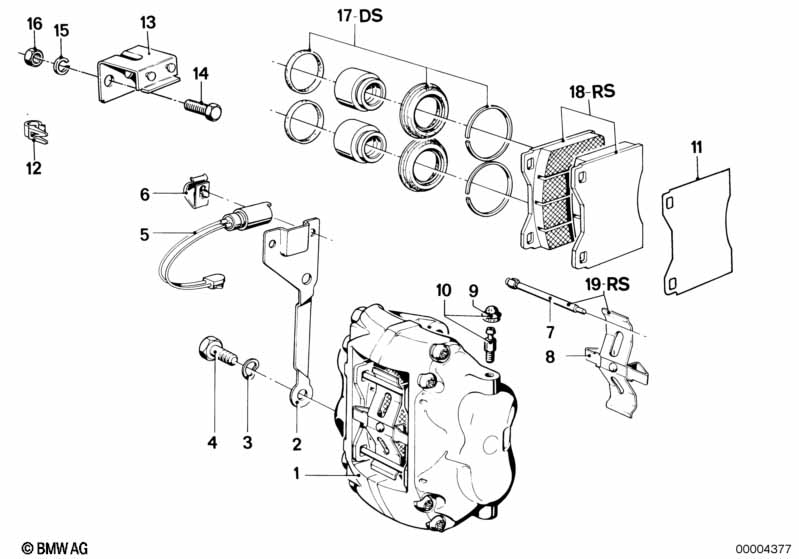

This Vorderradbremse-Bremsbelag-Fühler technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bremssattel links | 1 | 34113905465 | Shop at ECS Tuning | ||||||
| 01 | Bremssattel rechts | 1 | 34113905469 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Antiblockiersystem (ABS) |
=Ja |
|||||||||
| 01 | Bremssattel ohne Belag links | 280X22 | 1 | 34111120291 | $412.12 | Entfallen | Shop at ECS Tuning | |||
| 01 | Bremssattel ohne Belag rechts | 280X22 | 1 | 34111120292 | $412.12 | Entfallen | Shop at ECS Tuning | |||
| 02 | Halter | 1 | 34111119103 | $2.77 | Shop at ECS Tuning | |||||
| 03 | Federscheibe | B12-ZN | 4 | 07119932132 | $0.25 | Entfallen | Shop at ECS Tuning | |||
| 04 | Sechskantschraube | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 05 | Bremsbelagfühler | 1 | 34351179821 | $10.93 | Shop at ECS Tuning | |||||
| 06 | Kabelklemme | D=10-12MM | 1 | 61131361897 | $0.42 | Entfallen | Shop at ECS Tuning | |||
| 07 | Stift | 4 | 34111120394 | Entfallen | Shop at ECS Tuning | |||||
| 08 | Haltefeder | 2 | 34111120396 | Entfallen | Shop at ECS Tuning | |||||
| 09 | Staubkappe | 4 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 10 | Entlüfterventil | 4 | 34111103232 | $8.76 | Shop at ECS Tuning | |||||
| 11 | Schutzblech | 4 | 34111116005 | $6.22 | Shop at ECS Tuning | |||||
| 12 | Halter | D=10MM | 1 | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Halter | 1 | 61131362911 | $71.42 | Entfallen | Shop at ECS Tuning | ||||
| 14 | Sechskantschraube | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Unterlegscheibe | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Sechskantmutter | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Dichtungssatz Bremssattel | 2 | 34113909078 | Shop at ECS Tuning | ||||||
| 18 | Reparatursatz Bremsbeläge | 1 | 34113909080 | Shop at ECS Tuning | ||||||
| 19 | Satz Anbauteile | ATE | 1 | 34111150554 | $27.39 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
