Trommelbremse-Bremstrommel/Radbremszyl. for BMW 3 Series E21 320 (1979)

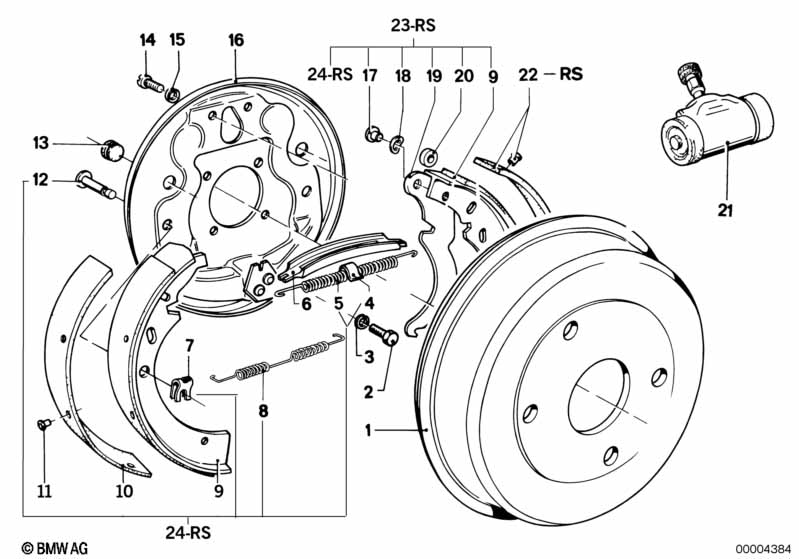

This Trommelbremse-Bremstrommel/Radbremszyl. technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Schwedenausführung |
=Ja |
|||||||||
| 01 | Bremstrommel | D=250MM | 2 | 34211117151 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Bremstrommel | D=250MM | 2 | 34211158714 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Sechskantschraube | M10X16 | 8 | 07119913817 | $0.68 | Shop at ECS Tuning | ||||
| 03 | Federscheibe | B10-ZNS3 | 8 | 07119904463 | Shop at ECS Tuning | |||||
| 04 | Bügel | 2 | 34213061725 | $9.02 | Shop at ECS Tuning | |||||
| 05 | Zugfeder | 2 | 34213660185 | $3.32 | Shop at ECS Tuning | |||||
| 06 | Druckstange links | 1 | 34213660190 | $6.02 | Shop at ECS Tuning | |||||
| 06 | Druckstange rechts | 1 | 34213660191 | $6.02 | Shop at ECS Tuning | |||||
| 07 | Druckfeder | 4 | 34211116476 | $1.50 | Shop at ECS Tuning | |||||
| 08 | Zugfeder | 2 | 34213660186 | $5.53 | Shop at ECS Tuning | |||||
| 09 | Bremsbacke asbestfrei | 250MM JURID 580 | 4 | 34211159588 | $45.52 | Shop at ECS Tuning | ||||
| 10 | Bremsbelag asbestfrei | ENERGIT 580 | 4 | 34211159590 | Entfallen | Shop at ECS Tuning | ||||
| 11 | Niet | C4X8 | X | 07119949241 | $1.17 | Shop at ECS Tuning | ||||
| 12 | Spannstift | 4 | 34211116477 | $5.90 | Shop at ECS Tuning | |||||
| 13 | Verschlussstopfen | 4 | 34211112791 | Shop at ECS Tuning | ||||||
| 14 | Sechskantschraube | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Federring | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Bremsträger links | 1 | 08/1977 | 34211120513 | Entfallen | Shop at ECS Tuning | ||||
| 16 | Bremsträger rechts | 1 | 08/1977 | 34211120514 | Entfallen | Shop at ECS Tuning | ||||
| 17 | Niet | 2 | 34213660164 | $2.25 | Shop at ECS Tuning | |||||
| 18 | Federscheibe | 10,5 / 18 | 2 | 34211117860 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Bremshebel | 2 | 34411100782 | $3.86 | Shop at ECS Tuning | |||||
| 20 | Distanzscheibe | 2 | 34213660163 | $1.27 | Shop at ECS Tuning | |||||
| 21 | Radbremszylinder | D=19,05MM | 2 | 34211117064 | Entfallen | Shop at ECS Tuning | ||||
| 22 | Reparatursatz Bremsbeläge asbestfrei | JURID 580 | 1 | 34211160165 | $42.30 | Shop at ECS Tuning | ||||
| 23 | Reparatursatz Bremsbacken mit Federn | 1 | 34419064269 | $126.11 | Entfallen | Shop at ECS Tuning | ||||
| 24 | Reparatursatz Federn | 1 | 34419064268 | Entfallen | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
