Ausgleichsbehälter for BMW 5 Series E12 518 (1976)

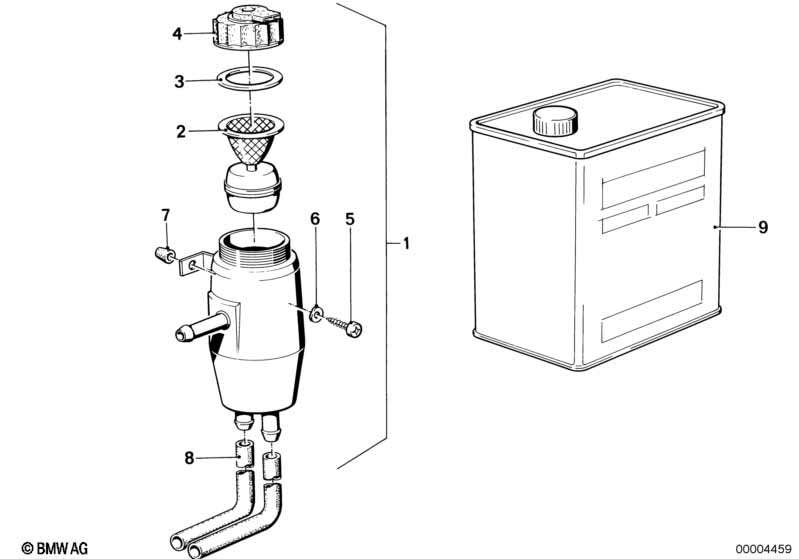

This Ausgleichsbehälter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ausgleichsbehälter | 3 AUSGÄNGE | 1 | 08/1975 | 08/1978 | 34321112399 | $65.00 | Shop at ECS Tuning | ||
| 02 | Sieb mit Schwimmer | 1 | 08/1975 | 08/1978 | 34321103065 | $23.22 | Entfallen | Shop at ECS Tuning | ||
| 03 | Dichtung | 1 | 08/1975 | 08/1978 | 34321102798 | $2.82 | Shop at ECS Tuning | |||
| 04 | Verschlussdeckel | 1 | 08/1975 | 08/1978 | 34321103064 | $27.58 | Entfallen | Shop at ECS Tuning | ||
| 04 | Verschluss mit Warnschalter | 1 | 08/1975 | 08/1978 | 34322225602 | $31.31 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Siebhülse | 1 | 08/1975 | 08/1978 | 34321120843 | $6.35 | Shop at ECS Tuning | |||
| 05 | Sechskantblechschraube | ST6,3X13-C | 2 | 08/1975 | 08/1978 | 07119916823 | $0.13 | Entfallen | Shop at ECS Tuning | |
| 06 | Unterlegscheibe | A6,4-200HV-ZNS3 | 2 | 08/1975 | 08/1978 | 07119903791 | $0.11 | Shop at ECS Tuning | ||
| 07 | Kappe | 2 | 08/1975 | 08/1978 | 51135676199 | $0.79 | Shop at ECS Tuning | |||
| 08 | Schlauch | 7.5X13.5 | X | 08/1975 | 08/1978 | 35006857512 | Shop at ECS Tuning | |||
| 09 | Bremsflüssigkeit | 250 ML | X | 08/1975 | 08/1978 | 81229407510 | $4.63 | Entfallen | Shop at ECS Tuning | |
| 09 | Bremsflüssigkeit | 500 ML | X | 08/1975 | 08/1978 | 81229407511 | $9.65 | Entfallen | Shop at ECS Tuning | |
| 09 | Bremsflüssigkeit | 1000 ML | X | 08/1975 | 08/1978 | 81229407512 | $14.84 | Entfallen | Shop at ECS Tuning | |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
