Bremsleitung hinten for BMW 4 Series F83 M4 M4

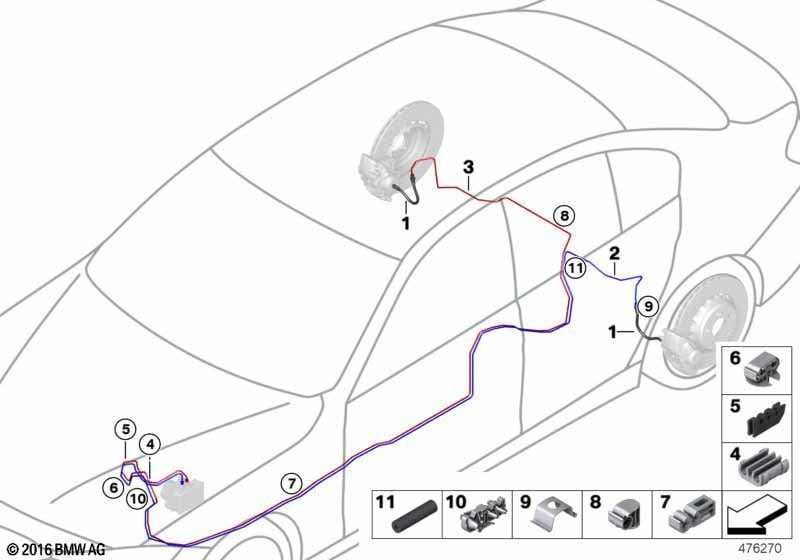

This Bremsleitung hinten technical drawing provides a detailed breakdown of the assembly for the 4 Series F83 M4 M4. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bremsschlauch hinten | 2 | 34302284748 | Shop at ECS Tuning | ||||||
| 02 | Rohrleitung-DSC Hydroaggregat- | M10/M10 | 1 | 34326865583 | Shop at ECS Tuning | |||||
| 03 | Rohrleitung-DSC Hydroaggregat- | M10/M12 | 1 | 34322284893 | Shop at ECS Tuning | |||||
| 04 | Abstandshalter | 1 | 34321107991 | $1.02 | Shop at ECS Tuning | |||||
| 05 | Tülle | 1 | 34306792093 | Shop at ECS Tuning | ||||||
| 06 | Halter Bremsleitung 2 fach | 2 | 34326850572 | Shop at ECS Tuning | ||||||
| 07 | Leitungsclip zweifach | 5 | 07/2015 | 34306784201 | $1.63 | Shop at ECS Tuning | ||||
| 07 | Leitungsclip zweifach | 5 | 34326871117 | Shop at ECS Tuning | ||||||
| 08 | Halter Bremsleitung | 4 | 34326855500 | Shop at ECS Tuning | ||||||
| 09 | Haltefeder | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Leitungsclip dreifach | D8/D5/D5 | 1 | 07147377155 | Shop at ECS Tuning |
