Bremsleitung hinten for BMW MINI F66 JCW

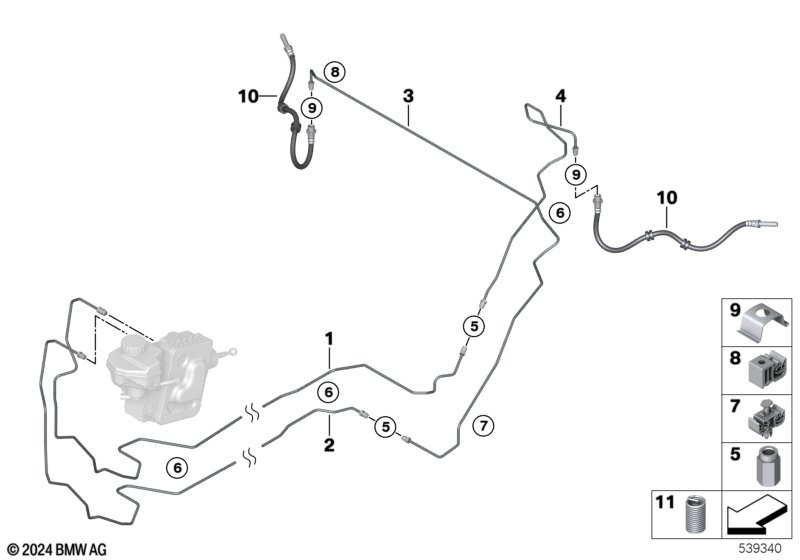

This Bremsleitung hinten technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rohrleitung | 1 | 34308842264 | NoS | Shop at ECS Tuning | |||||
| 02 | Rohrleitung | 1 | 34308842265 | NoS | Shop at ECS Tuning | |||||
| 03 | Rohrleitung | 1 | 34308842260 | NoS | Shop at ECS Tuning | |||||
| 04 | Rohrleitung | 1 | 34308842261 | NoS | Shop at ECS Tuning | |||||
| 05 | Verbindungsstück | M10X1 | 2 | 34325A607E4 | Shop at ECS Tuning | |||||
| 06 | Halter Bremsleitung | 7 | 07148851873 | Shop at ECS Tuning | ||||||
| 07 | Leitungsclip zweifach | 1 | 34306858579 | Shop at ECS Tuning | ||||||
| 08 | Leitungsclip | 1 | 07148851872 | Shop at ECS Tuning | ||||||
| 09 | Haltefeder | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Bremsschlauch hinten | 2 | 34308857532 | Shop at ECS Tuning | ||||||
| 11 | Heli-Coil-Gewindeeinsatz | M6X12 | 1 | 33306786621 | Shop at ECS Tuning |
Ergänzungen
- NoS = No Stock
