Bremsleitung vorne for BMW MINI F66 JCW

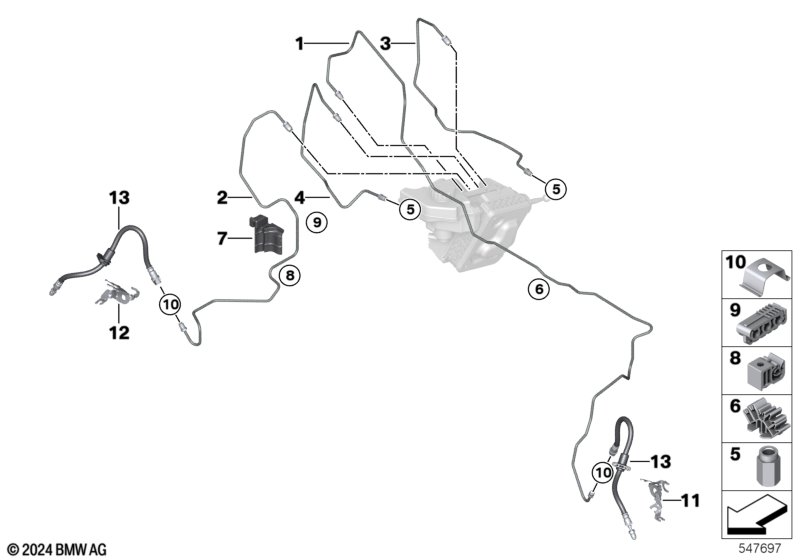

This Bremsleitung vorne technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rohrleitung | 1 | 34308842256 | NoS | Shop at ECS Tuning | |||||
| 02 | Rohrleitung | 1 | 34308842257 | NoS | Shop at ECS Tuning | |||||
| 03 | Rohrleitung | 1 | 34308842262 | NoS | Shop at ECS Tuning | |||||
| 04 | Rohrleitung | 1 | 34308842263 | NoS | Shop at ECS Tuning | |||||
| 05 | Verbindungsstück | M10X1 | 2 | 34325A607E4 | Shop at ECS Tuning | |||||
| 06 | Leitungsclip fünffach | 2 | 34306858580 | Shop at ECS Tuning | ||||||
| 07 | Halter Bremsleitung | 1 | 34306855949 | Shop at ECS Tuning | ||||||
| 08 | Leitungsclip | 2 | 07148851872 | Shop at ECS Tuning | ||||||
| Der 4-fach Abstandshalter wurde durch einen 3-fach Abstandshalter ersetzt. |
||||||||||
| 09 | Abstandshalter 3-fach | 1 | 34306783636 | $1.48 | Shop at ECS Tuning | |||||
| 10 | Haltefeder | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 11 | Halter Bremsschlauch vorn links | 1 | 34306799733 | Shop at ECS Tuning | ||||||
| 12 | Halter Bremsschlauch vorn rechts | 1 | 34306799734 | Shop at ECS Tuning | ||||||
| 13 | Bremsschlauch vorn | 2 | 34308857531 | Shop at ECS Tuning | ||||||
Ergänzungen
- NoS = No Stock
